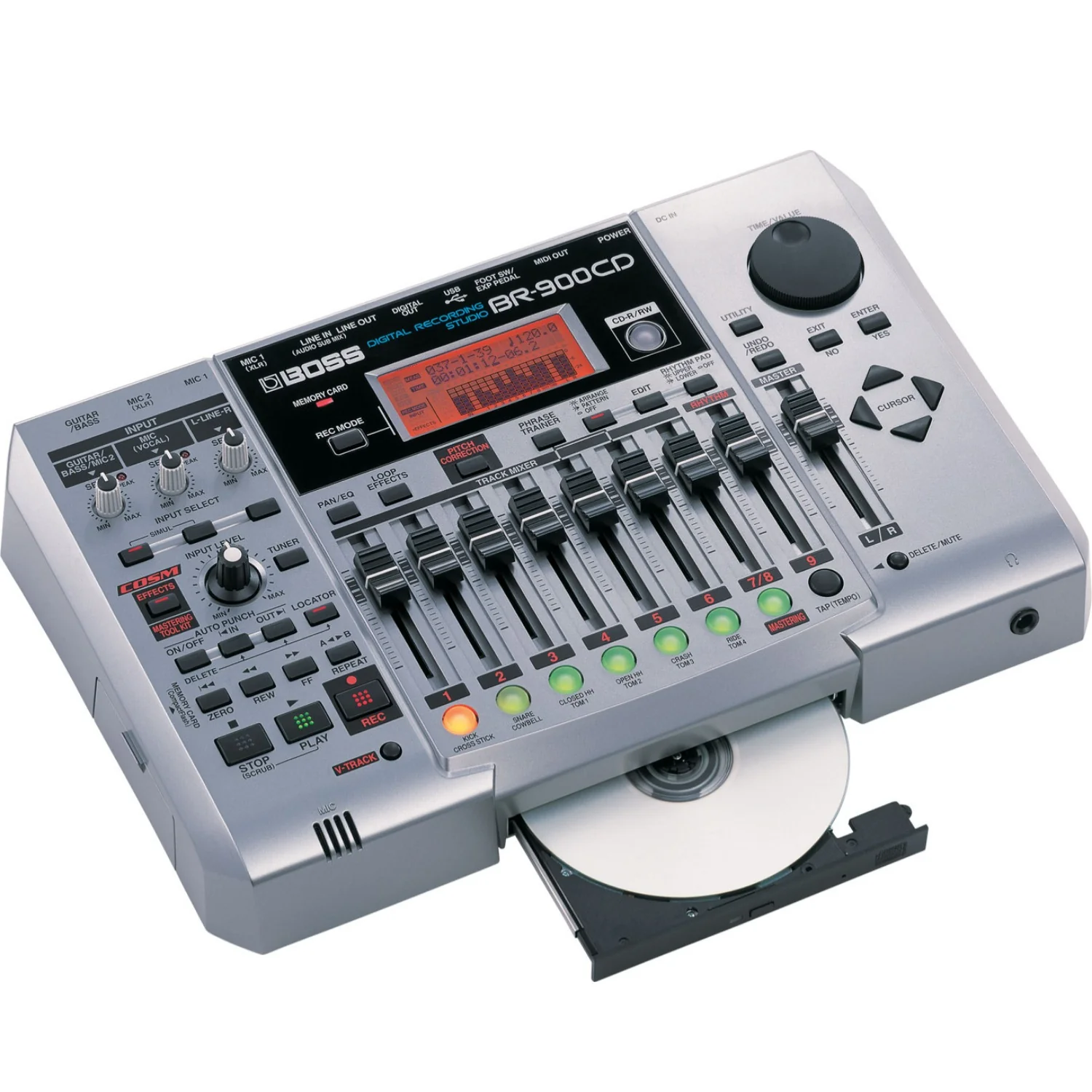

Boss BR-900CD Digital Recorder

Boss BR-900CD Digital Recorder Overview:

The BR-900CD is one of the world’s most popular, easy-to-use portable multi-track recorders. With Version 2, BOSS takes the best BR features and expands it with dozens of new COSM guitar-amp models, plus a super-cool new drum-editing software app and 500 minutes of recording time via 1GB Compact Flash.

Features:

• 8-track recorder with CD burner
• 2 XLR phantom-powered mic inputs
• 46 types of BOSS GT-Pro class COSM amps onboard
• 1 GB Compact Flash card included for 500 track-minutes of recording time
• Pro-quality effects for every instrument type, plus mastering and pitch correction

The Best Gets Better
With the same reliable and ultra-friendly operation as BOSS’s highly popular BR-864, the BR-900CD takes three big steps forward by increasing the front-panel fader count from four to eight, and adding a built-in CD-RW drive and Pitch Correction to the feature set. The BR-900CD is compatible with CompactFlash cards up to 1GB capacity, which provides up to 500 minutes of record time (standard mode) in one shot. Even with all of these great new features, the unit’s footprint remains small for ease of travel.

Expanded Recording Time
No need to worry about track- record lengths. With a 1GB Compact Flash card onboard, the BR-900CD Version 2 provides up to 500 minutes of recording time.

New COSM Amps Onboard
It’s a dream collection for guitarists. Direct from BOSS’ top-of-the-line GT-Pro come 46 types of COSM guitar-amp models. Simply plug in and explore an amazing treasure trove of tone without the cost and hassle of dealing with physical amplifiers.

New Ways to Groove
The original BR-900CD was equipped with a built-in drum machine.Version 2 has a virtual drummer onboard as well, but with an advantage: a downloadable graphical Rhythm Editor software forcreating rhythm pattern and arrangements visually via Mac or PC. It’s the best of both worlds.

USB Spoken
Connect the BR-900CD to the outside world with one convenient USB connection. Import and export audio files and song data quickly and easily. Need to add some drum loops or vocal samples to your song? Simply drag and drop your favorite WAV files from USB-equipped computer directly into the BR-900CD. Conversely, you can export audio that you’ve created internally on the BR-900CD to computers.

Specifications:

• Tracks:
• Track: 8
• V-Track: 64 (8 V-Tracks per each Track)
• * Up to 2 tracks can be recorded simultaneously, and up to 8 tracks can be played back simultaneously.
• Useful Capacity: CompactFlash: 32 MB to 1 GB
• Data Type:
• HiFi (MT2)
• STANDARD (LV1)
• LONG (LV2)
• Signal Processing:
• AD Conversion: 24 bit delta-sigma Modulation + AF-AD (GUITAR/BASS, MIC), 24 bit delta-sigma Modulation (LINE, SIMUL)
• DA Conversion: 24 bit delta-sigma Modulation
• Internal Processing: 24 bit (digital mixer section)
• Sample Rate: 44.1 kHz
• Frequency Response: 20 Hz to 20 kHz (+1/-3 dBu)
• Nominal Input Level (Variable):
• GUITAR/BASS jack: -20 dBu
• MIC (TRS balanced/XLR) jack: -40 dBu
• LINE jack: -10 dBu
• Input Impedance:
• GUITAR/BASS jack: 1 M ohms
• MIC 1/2 jack: 1.0 k ohms (HOT-COLD)(TRS balanced/XLR), 1.0 k ohms (HOT-GND, COLD-GND)
• LINE jack: 10 k ohms
• Nominal Output Level: LINE OUT jack: -10 dBu
• Output Impedance:
• LINE OUT jack: 2 k ohms
• Headphones jack: 140 ohms
• Recommended Load Impedance:
• LINE OUT jack: 20 k ohms or greater
• Headphones jack: 32 to 100 ohms
• Residual Noise Level: LINE OUT jack: -85 dBu or less (INPUT SELECT: GUITAR/BASS, input terminated with 1 k ohms, INPUT SENS: CENTER, IHF-A, typ., EFFECT: OFF)
• Interface:
• DIGITAL OUT: Optical type
• USB Connector
• Display: 16 Characters x 2 Lines + Approx. 100 icons (Backlit LCD)

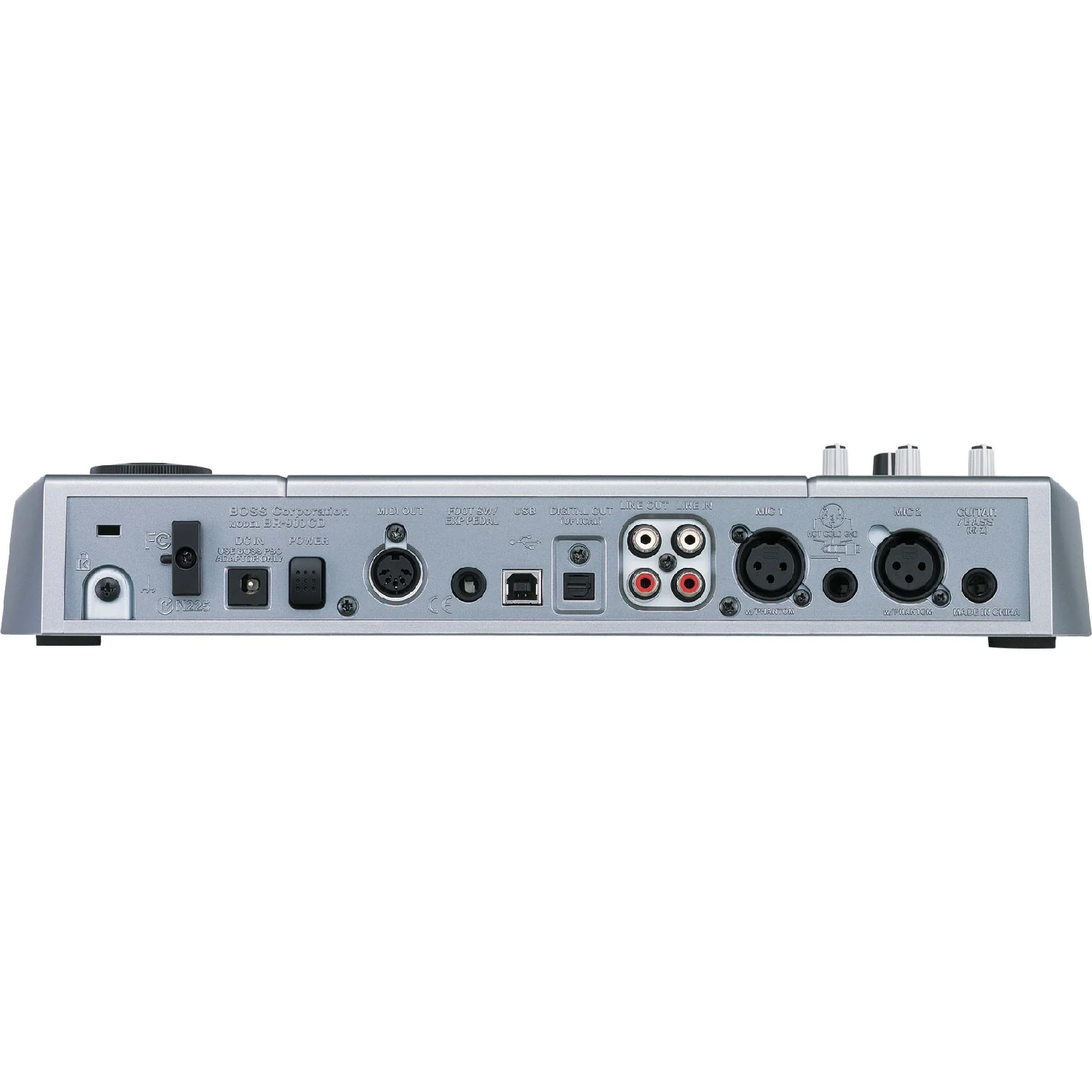

• Connectors:
• GUITAR/BASS jack (1/4 inch phone type)
• MIC 1 jacks (XLR type/TRS 1/4 inch phone type, Balanced)
• MIC 2 jacks (XLR type, Balanced)
• LINE IN jack L/R (RCA Phono type)
• LINE OUT jack L/R (RCA Phono type)
• DIGITAL OUT Connector (Optical type)
• FOOT SW/EXP PEDAL jack (1/4 inch phone type)
• MIDI OUT Connector
• Headphones Jack (Stereo 1/4 inch phone type)
• Power Supply: DC 9 V; Supply AC Adaptor (PSC series), Dry batteries x 6
• Current Draw:
• 900 mA (AC Adaptor)
• 200 mA (Dry Batteries)
• * Expected battery life under continuous use:Alkaline: 4 hours(These figures will vary depending on the actual conditions of use.)
• Accessories:
• AC Adaptor: PSC series
• Demo Card
• Owner's Manual
• Options:
• Foot Switch: FS-5U
• Pedal Switch: DP-2 (Roland)
• Expression Pedal: EV-5 (Roland), FV-300L
• Stereo Headphones: RH-200/RH-50
• SIZE AND WEIGHT ( EXCLUDING BATTERIES )
• Width:
• 351 mm
• 13-7/8 inches
• Depth
• 225 mm
• 8-7/8 inches
• Height
• 69 mm
• 2-3/4 inches
• Weight
• 2.2 kg
• 4 lbs. 14 oz.
