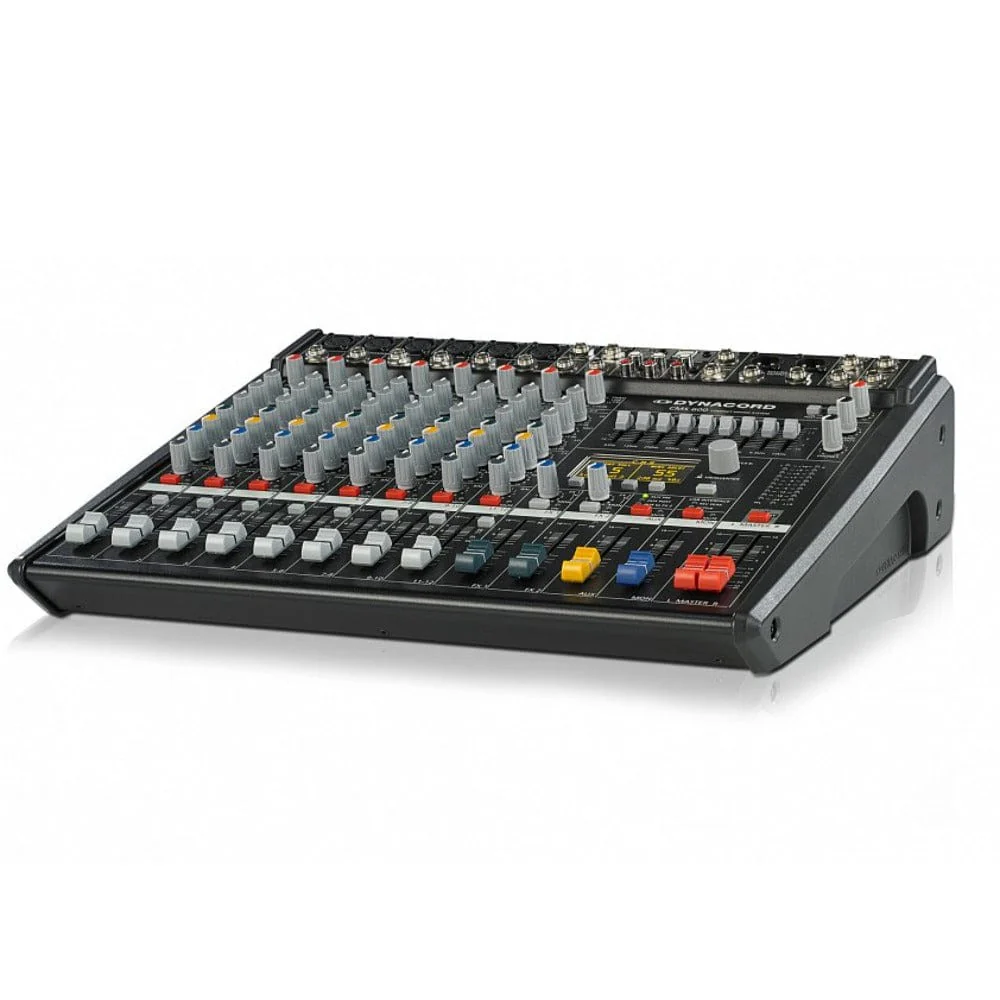

Dynacord CMS 600-3 8‑Channel Compact Mixing System

Dynacord CMS 600-3 8‑Channel Compact Mixing System Overview:

Thanks to its impressive feature set and versatility, the CMS 600-3 mixer is the ideal choice for all professional applications in which few channels, yet high audio quality, are required.

Being light and compact, it poses no transport problems. The CMS 600-3 mixer is also a great solution in many fixed installation applications.

Performance without compromise.

The pro audio mixer amongst mixers. Unique. CMS 600-3

• Intuitive mixer section: with 8 input channels with 4 Mic/Line, 2 Mic/Stereo-Line, 2 Stereo-Line inputs
• 2 High-Quality FX processors, editable with 100 factory and 20 user presets
• Professional 4x4 24-bit/96kHz USB interface, recording software and MIDI interface for FX control, please see information on available drivers
• Stereo EQ for the main mix
• First-class components ( e.g. ALPS faders and potentiometers)
• Large, contrast rich OLED display
• Lightweight (5.8kg) super compact package

Specifications:

• Channels: 4 +2 + 2
• MIC/Line-Mono: 4
• MIC/Line-Mono / USB-Stereo (Super Channel): 2
• Line L-R / CD-IN-Stereo: 2
• Auxiliarys (AUX, MON): Pre/Post switchable, Pre
• MIC GAIN (LINE -20 dB): +10 to +60 dB
• TRIM LINE/CD (Stereo): -10 to +20 dB
• THD, at 1 kHz, MBW = 80 kHz
• MIC input to Master A L/R outputs, +16 dBu, typical: < 0.005%
• Frequency Response, -3 dB, ref. 1 kHz
• Any input to any Mixer output: 15 Hz to 70 kHz
• Crosstalk, 1 kHz
• Channel to Channel: < -80 dB
• Mute & Standby switch attenuation: > 100 dB
• Fader & FX/AUX/MON-Send attenuation: > 85 dB
• CMRR, MIC input, 1 kHz: > 80 dB
• Input Sensitivity, all level controls in max. position
• MIC: -74 dBu (155 µV)
• LINE (Mono): -54 dBu (1.55 mV)
• LINE (Stereo): -34 dBu (15.5 mV)
• CD (Stereo): -34 dBu (15.5 mV)
• Maximum Level, mixing desk
• MIC inputs: +12 dBu
• Mono Line inputs: +31 dBu
• Stereo Line inputs: +30 dBu
• All other inputs: +22 dBu
• All other outputs: +22 dBu
• Input Impedances
• MIC: 2 ㏀
• CD In: 10 ㏀
• All other inputs: > 15 ㏀
• Output Impedances
• Phones: 47 Ω
• All other outputs: 75 Ω (unbalanced), 150 Ω (balanced)
• Equivalent Input Noise, MIC input, A-weighted, 150 ohms: -130 dBu
• Noise, Channel inputs to Master A L/R outputs, A-weighted
• Master fader down: -100 dBu
• Master fader 0 dB, Channel fader down: -92 dBu
• Master fader 0 dB, Channel fader 0 dB, Channel gain unity: -82 dBu
• Equalization
• LO Shelving: ±15 dB / 60 Hz
• MID Peaking: ±12 dB / 2.4 kHz
• HI Shelving: ±15 dB / 12 kHz
• Master EQ 9-band (63, 125, 250, 500, 1k, 2k, 4k, 6.3k, 12kHz): ±10 dB / Q = 1.5 to 2.5
• Filter
• LO-CUT, mono inputs: f = 80 Hz, 18 dB/oct.
• Filter
• LO-CUT, mono inputs: f = 80 Hz, 18 dB/oct.
• Display: 128 x 64 pixels, OLED
• Effects
• Type: Dual stereo 24/48-bit multi effects processors
• Effects: presets 100 Factory + 20 User, Tap-Delay
• Remote control: Footswitch, MIDI
• Digital Audio Interface
• Channels: 4 In / 4 Out
• AD/DA Conversion: 24-bit
• Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
• PC Interface: USB2.0, Female Type B
• Supported OS: See documentation
• MIDI Interface: 5-pin DIN connector, In / Out
• Protection
• Mixer Outputs (Relay controlled): AUX, MON, MASTER A L/R
• Switching Mode Power Supply (µC controlled): Mains Over/Undervoltage
• Phantom Power, switchable: 48 V DC
• Power Requirements (SMPS with auto range mains input): 100 V to 240 V AC, 50 Hz to 60 Hz
• Power Consumption, at 1/8 maximum output power, 4 Ω: 35 W
• Safety: Class I
• Ambient Temperature Limits: +5 °C to +40 °C (40 °F to 105 °F)
• Dimensions (W x H x D), mm: 416.9 x 108.6 x 347.8 Rack-mount (7.5 HE): 483.0 x 99.1 x 332.6
• Weight
• Net Weight 5.8 kg
• Shipping Weight: 7.8 kg
