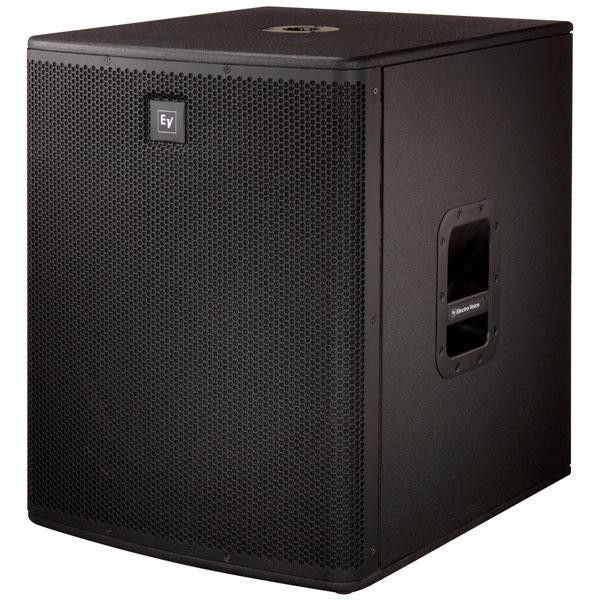

Electro-Voice ELX118 Live X 18inch Subwoofer
The EV Live X ELX118 is an 18'' subwoofer designed to deliver deep, powerful, chest punching bass in a ruggedly built, lightweight wood cabinet. It is optimized to work in perfect, powerful harmony with EV's ELX112 and ELX115 Live X series loudspeakers. Rear panel connections include 1 XLR/TRS Combo Jack and 1 XLR Link Output. The EV ELX118 Subwoofer's rugged wood cabinet supports either pole-mounted or stacked configurations.
Weighing in at only 70 lbs, the EV ELX118 is the perfect solution for DJs and musicians who set up and perform alone. No need for a second set of hands to lug this sub around. The Electro-Voice ELX118 is lightweight, packs a clear, powerful low-end punch and delivers EV quality at a price that wont empty your bank account. Whether used in a nightclub, house of worship, or at a family party, quality sound will fill the air and satisfy even the most critical ears.
With the Electro-Voice ELX118 subwoofer as part of your live sound arsenal, you'll never come up short in the bass department again.
Weighing in at only 70 lbs, the EV ELX118 is the perfect solution for DJs and musicians who set up and perform alone. No need for a second set of hands to lug this sub around. The Electro-Voice ELX118 is lightweight, packs a clear, powerful low-end punch and delivers EV quality at a price that wont empty your bank account. Whether used in a nightclub, house of worship, or at a family party, quality sound will fill the air and satisfy even the most critical ears.
With the Electro-Voice ELX118 subwoofer as part of your live sound arsenal, you'll never come up short in the bass department again.
- 18'' woofer provides extended low-frequency output
- 32 Hz 200 kHz frequency range 96 dB SPL sensitivity; 134 dB max SPL
- 400 W continuous and 1600 W peak power handling
- Rugged wood cabinetѝsupports pole-mounted or stacked Live Loudspeakers
Specifications:
- Axial Sensitivity 96 dB
- Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
- Frequency Response (-3 dB) 50 Hz - 100 Hz Hz
- Frequency Response (-10 dB) 35 Hz - 200 Hz Hz
- Recommended High-Pass Frequency 30 Hz
- Max. SPL/1m (calc) 134 dB
- Coverage (Nominal -6 dB) HÌâå¡ Omnidirectional Ìâå¡
- Coverage (Nominal -6 dB) VÌâå¡ Omnidirectional Ìâå¡
- LF Transducer (1) EVS-18K, 457mm (18'') Woofer
- HF Transducer N/A
- Crossover Frequency N/A Hz
- Nominal Impedance (Passive) 8 Ì_å©
- Minimum Impedance 6.7 Ì_å©
- Connector Type Dual NL4
- Grill 18GA Steel with Black Powdercoat
$100,012.00
Electro-Voice ELX118 Live X 18inch Subwoofer—
$100,012.00
Description
The EV Live X ELX118 is an 18'' subwoofer designed to deliver deep, powerful, chest punching bass in a ruggedly built, lightweight wood cabinet. It is optimized to work in perfect, powerful harmony with EV's ELX112 and ELX115 Live X series loudspeakers. Rear panel connections include 1 XLR/TRS Combo Jack and 1 XLR Link Output. The EV ELX118 Subwoofer's rugged wood cabinet supports either pole-mounted or stacked configurations.
Weighing in at only 70 lbs, the EV ELX118 is the perfect solution for DJs and musicians who set up and perform alone. No need for a second set of hands to lug this sub around. The Electro-Voice ELX118 is lightweight, packs a clear, powerful low-end punch and delivers EV quality at a price that wont empty your bank account. Whether used in a nightclub, house of worship, or at a family party, quality sound will fill the air and satisfy even the most critical ears.
With the Electro-Voice ELX118 subwoofer as part of your live sound arsenal, you'll never come up short in the bass department again.
Weighing in at only 70 lbs, the EV ELX118 is the perfect solution for DJs and musicians who set up and perform alone. No need for a second set of hands to lug this sub around. The Electro-Voice ELX118 is lightweight, packs a clear, powerful low-end punch and delivers EV quality at a price that wont empty your bank account. Whether used in a nightclub, house of worship, or at a family party, quality sound will fill the air and satisfy even the most critical ears.
With the Electro-Voice ELX118 subwoofer as part of your live sound arsenal, you'll never come up short in the bass department again.
- 18'' woofer provides extended low-frequency output
- 32 Hz 200 kHz frequency range 96 dB SPL sensitivity; 134 dB max SPL
- 400 W continuous and 1600 W peak power handling
- Rugged wood cabinetѝsupports pole-mounted or stacked Live Loudspeakers
Specifications:
- Axial Sensitivity 96 dB
- Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
- Frequency Response (-3 dB) 50 Hz - 100 Hz Hz
- Frequency Response (-10 dB) 35 Hz - 200 Hz Hz
- Recommended High-Pass Frequency 30 Hz
- Max. SPL/1m (calc) 134 dB
- Coverage (Nominal -6 dB) HÌâå¡ Omnidirectional Ìâå¡
- Coverage (Nominal -6 dB) VÌâå¡ Omnidirectional Ìâå¡
- LF Transducer (1) EVS-18K, 457mm (18'') Woofer
- HF Transducer N/A
- Crossover Frequency N/A Hz
- Nominal Impedance (Passive) 8 Ì_å©
- Minimum Impedance 6.7 Ì_å©
- Connector Type Dual NL4
- Grill 18GA Steel with Black Powdercoat
