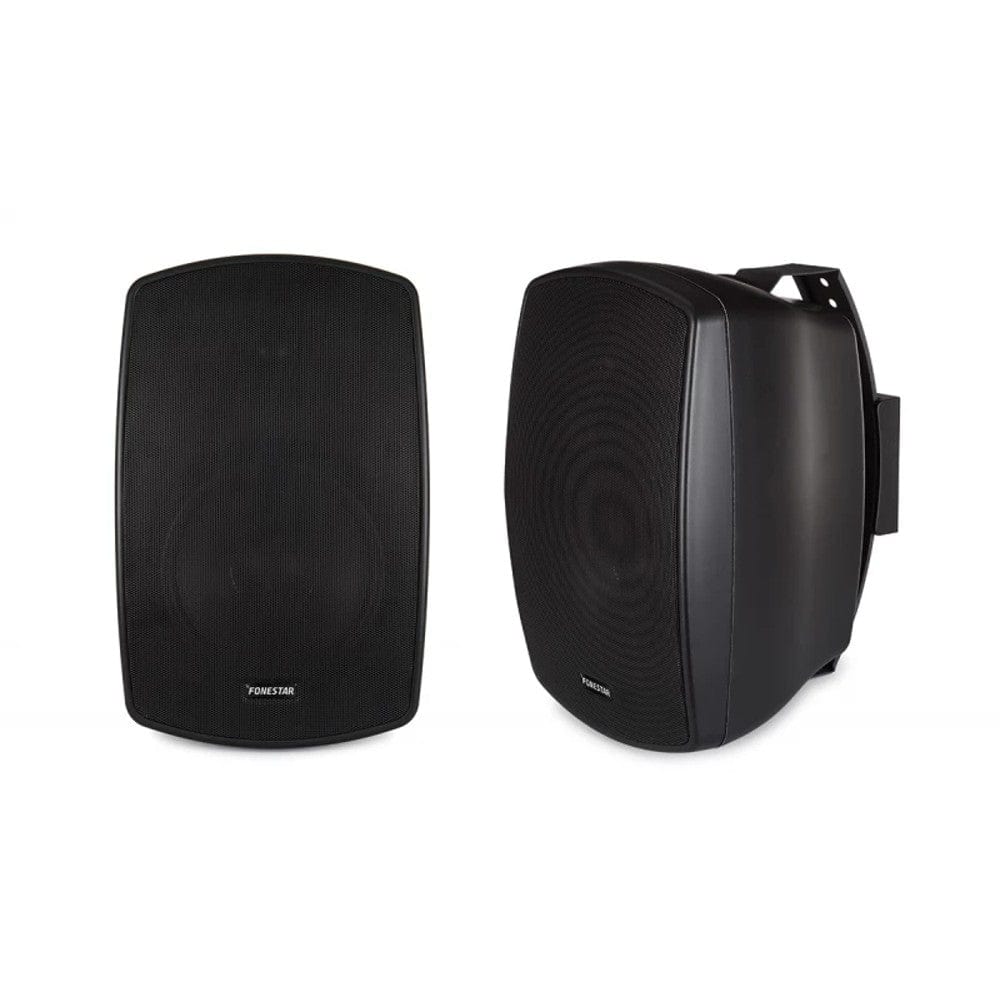

Fonestar Elipse-8T Wall Speaker
Pair of surface-mount loudspeakers with 100 V line transformer and low impedance.
The ELIPSE range is specially designed for PA and surround sound applications. The speakers feature excellent finish, elegant design, high power capacity and durability. They include a wall mount that can be swivelled in all directions for easy installation.
Prepared for outdoor use, water protection and anti-corrosion materials.
They are a great solution for installations in public places such as restaurants, cafés, supermarkets, shopping centres, etc.
Technical Specifications:
Pair of low impedance loudspeakers with 100 V line transformer. Designed for outdoor use, water-resistant and rustproof materials.
| FEATURES: | Pair of low impedance loudspeakers with 100 V line transformer. Designed for outdoor use, water-resistant and rustproof materials. |
| POWER: | 120 W maximum, 60 W RMS |
| LOUDSPEAKERS: | 1 x 8" polypropylene woofer |
| 1 x 1" silk dome tweeter | |
| RESPONSE: | 30-20,000 Hz |
| IMPEDANCE: | High Z 100 V line: |
| 200 Ω (50 W) | |
| 400 Ω (25 W) | |
| 800 Ω (12.5 W) | |
| 1,600 Ω (6.25 W) | |
| Low Z: 8 Ω | |
| SENSITIVITY: | 90 dB at 1 W/1 m |
| SWITCH: | W selector in high Z and low Z |
| PROTECTION: | IP-56 |
| MATERIALS: | Aluminium grille |
| Weatherproof mount | |
| Stainless steel screws | |
| CONNECTORS: | Spring terminals |
| COLOUR: | Black (RAL 9017) |
| DIMENSIONS: | 244 x 378 x 240 mm depth |
| WEIGHT: | 2 x 5 kg |
| ACCESSORIES: | Adjustable fixing mounts |
Description
Pair of surface-mount loudspeakers with 100 V line transformer and low impedance.
The ELIPSE range is specially designed for PA and surround sound applications. The speakers feature excellent finish, elegant design, high power capacity and durability. They include a wall mount that can be swivelled in all directions for easy installation.
Prepared for outdoor use, water protection and anti-corrosion materials.
They are a great solution for installations in public places such as restaurants, cafés, supermarkets, shopping centres, etc.
Technical Specifications:
Pair of low impedance loudspeakers with 100 V line transformer. Designed for outdoor use, water-resistant and rustproof materials.
| FEATURES: | Pair of low impedance loudspeakers with 100 V line transformer. Designed for outdoor use, water-resistant and rustproof materials. |
| POWER: | 120 W maximum, 60 W RMS |
| LOUDSPEAKERS: | 1 x 8" polypropylene woofer |
| 1 x 1" silk dome tweeter | |
| RESPONSE: | 30-20,000 Hz |
| IMPEDANCE: | High Z 100 V line: |
| 200 Ω (50 W) | |
| 400 Ω (25 W) | |
| 800 Ω (12.5 W) | |
| 1,600 Ω (6.25 W) | |
| Low Z: 8 Ω | |
| SENSITIVITY: | 90 dB at 1 W/1 m |
| SWITCH: | W selector in high Z and low Z |
| PROTECTION: | IP-56 |
| MATERIALS: | Aluminium grille |
| Weatherproof mount | |
| Stainless steel screws | |
| CONNECTORS: | Spring terminals |
| COLOUR: | Black (RAL 9017) |
| DIMENSIONS: | 244 x 378 x 240 mm depth |
| WEIGHT: | 2 x 5 kg |
| ACCESSORIES: | Adjustable fixing mounts |
