Ibanez AS93FM Hollowbody Electric Guitar

Ibanez AS93FM Hollowbody Electric Guitar Overview:

Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.

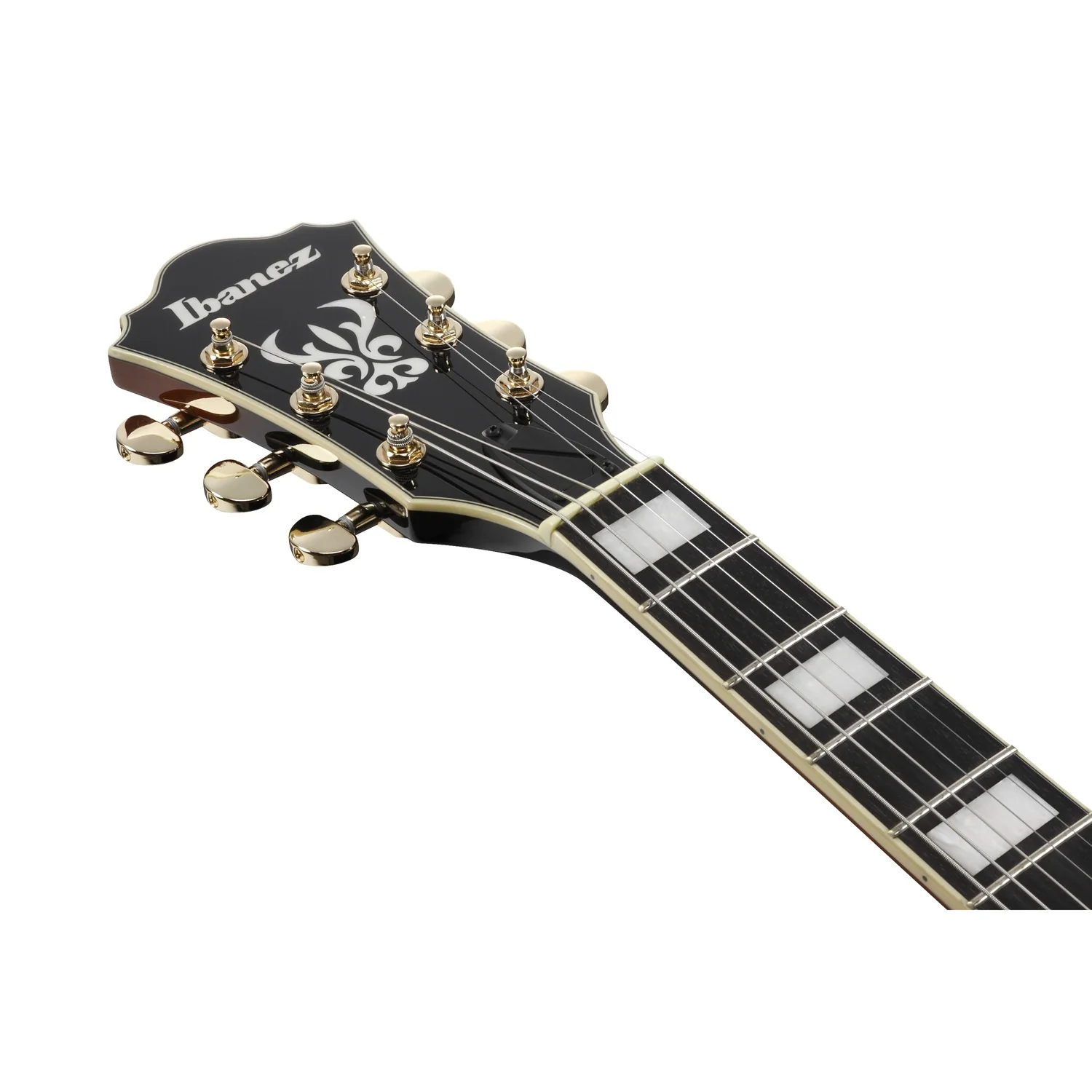

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Quik Change III Tailpiece
The Quik Change III tailpiece enables faster and easier string changing.

Super 58 Pickups
Super 58 pickups feature moderate output and vintage tone.

Specifications:

• neck type: AS Expressionist3pc Nyatoh/MapleSet-in neck
• top/back/side: Flamed Maple top Flamed Maple backFlamed Maple sides
• fretboard: Bound Macassar Ebony fretboardAcrylic block inlay
• fret: Medium frets
• number of frets: 22
• bridge: Gibraltar Performer bridge
• string space: 10.5mm
• tailpiece: Quik Change III tailpiece
• neck pickup: Super 58 (H) neck pickupPassive/Alnico
• bridge pickup: Super 58 (H) bridge pickupPassive/Alnico
• factory tuning: 1E,2B,3G,4D,5A,6E
• string gauge: .010/.013/.017/.030/.042/.052
• hardware color: Gold

NECK DIMENSIONS

• Scale : 628mm
• a : Width 43mm at NUT
• b : Width 57mm at 22F
• c : Thickness 21mm at 1F
• d : Thickness 24mm at 9F
• Radius : 305mmR

BODY DIMENSIONS

• a : Length 19 1/4"
• b : Width 15 3/4"
• c : Max Depth 2 5/8"
