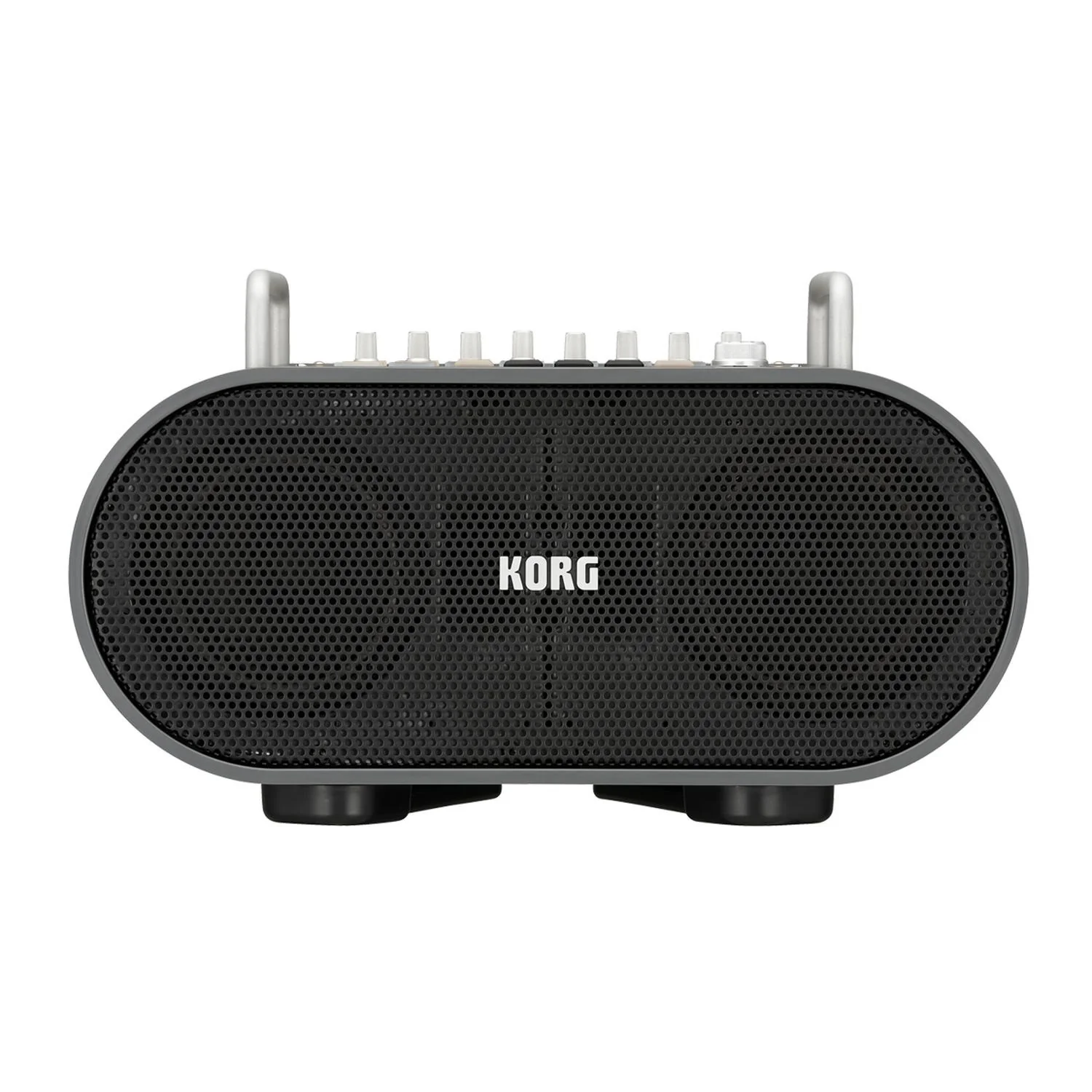

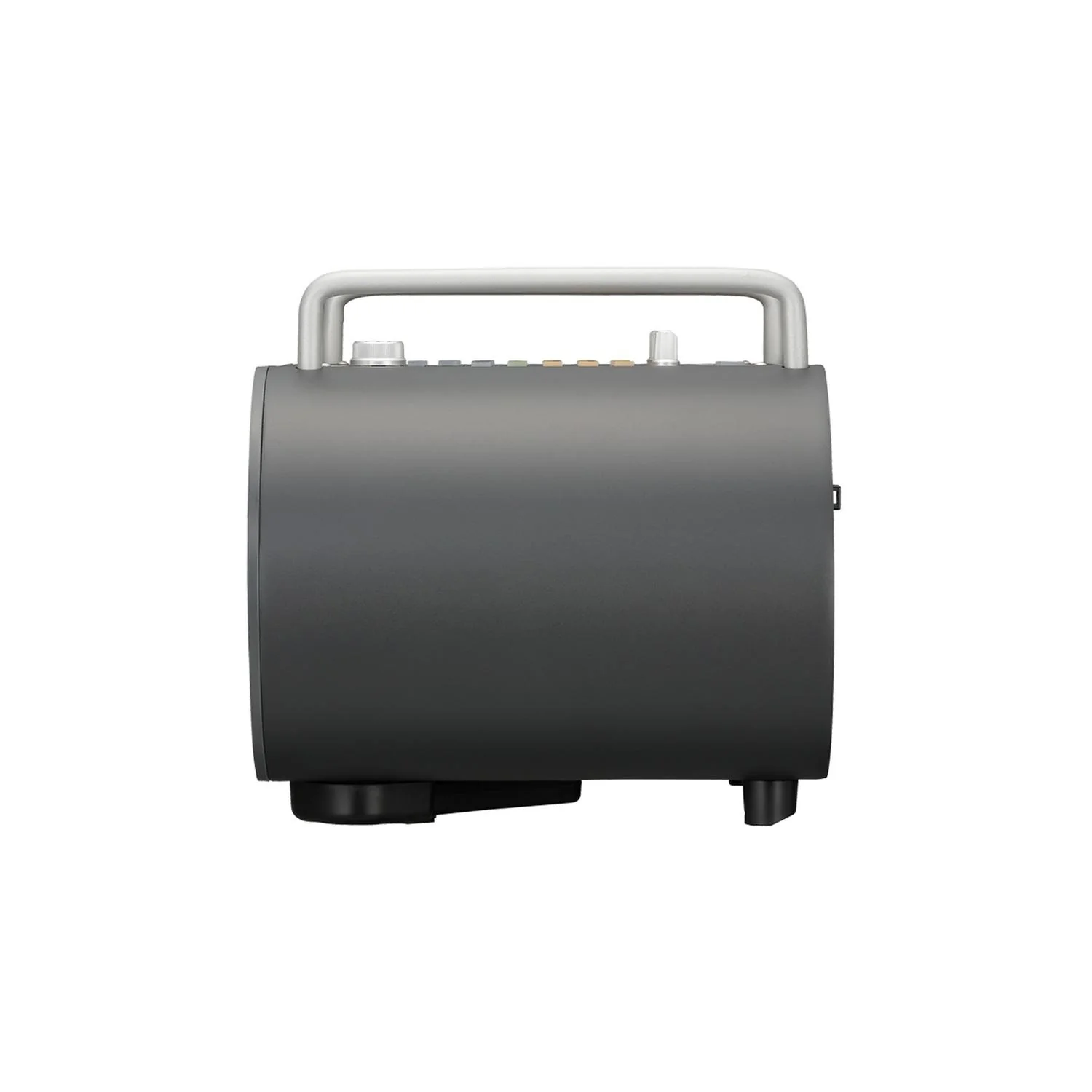

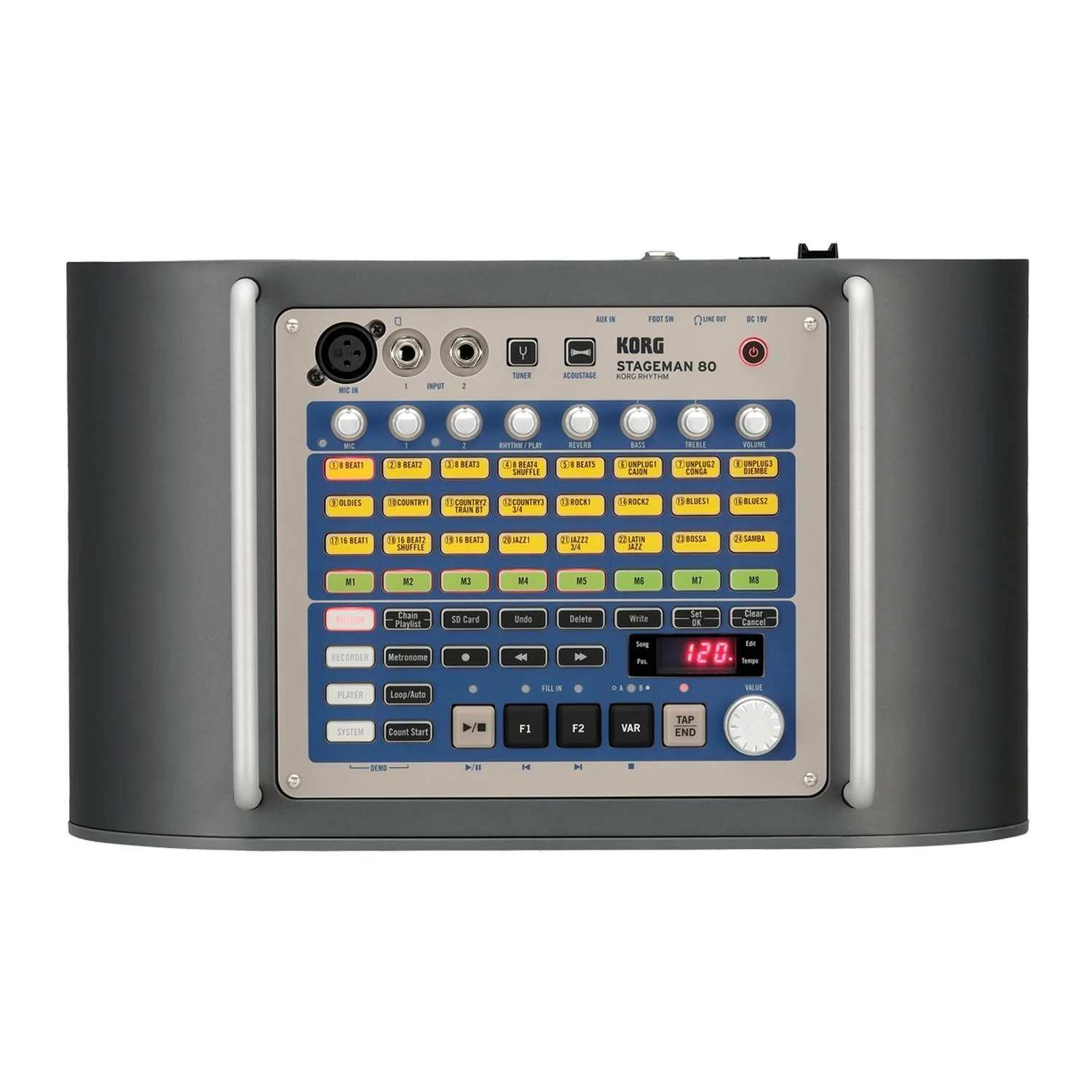

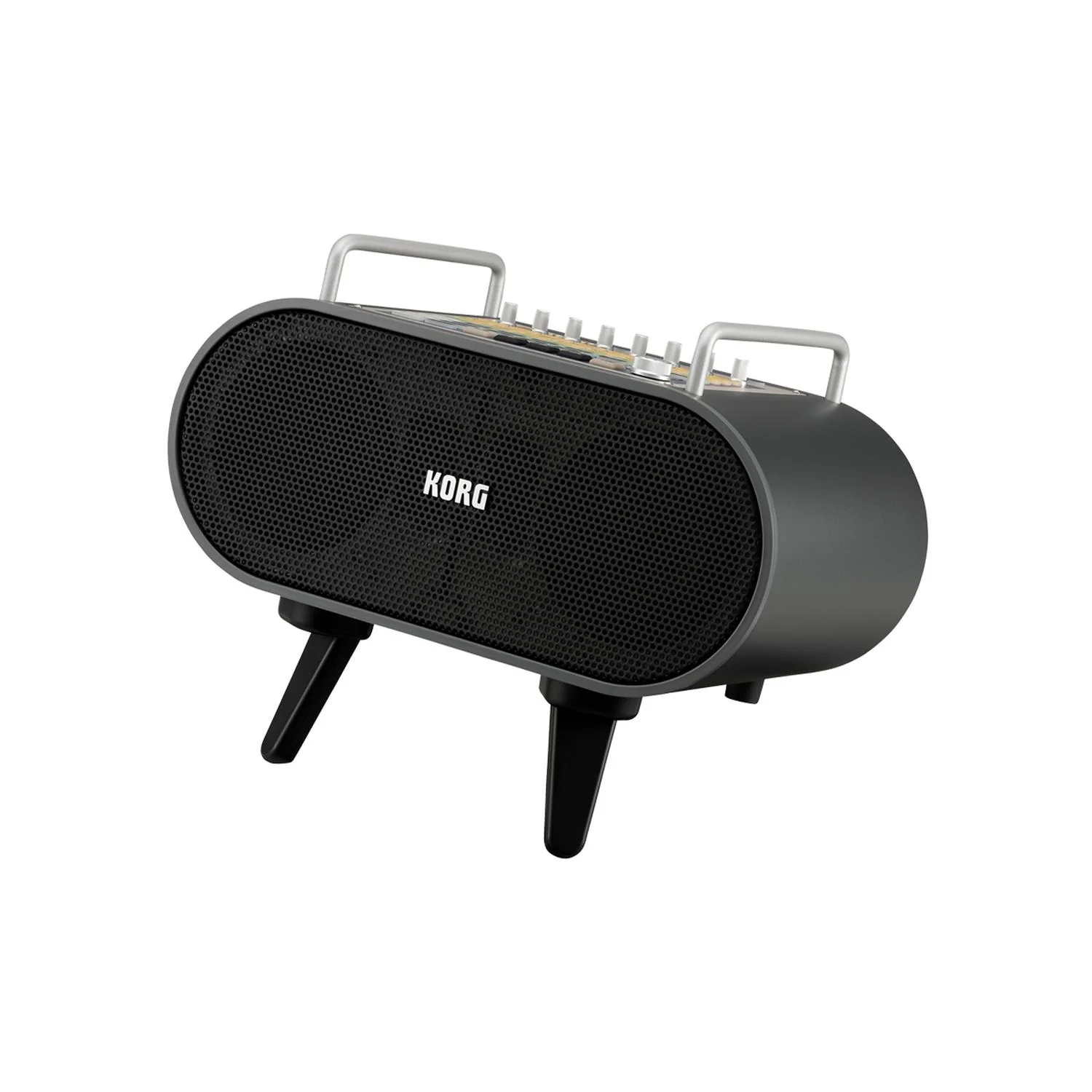

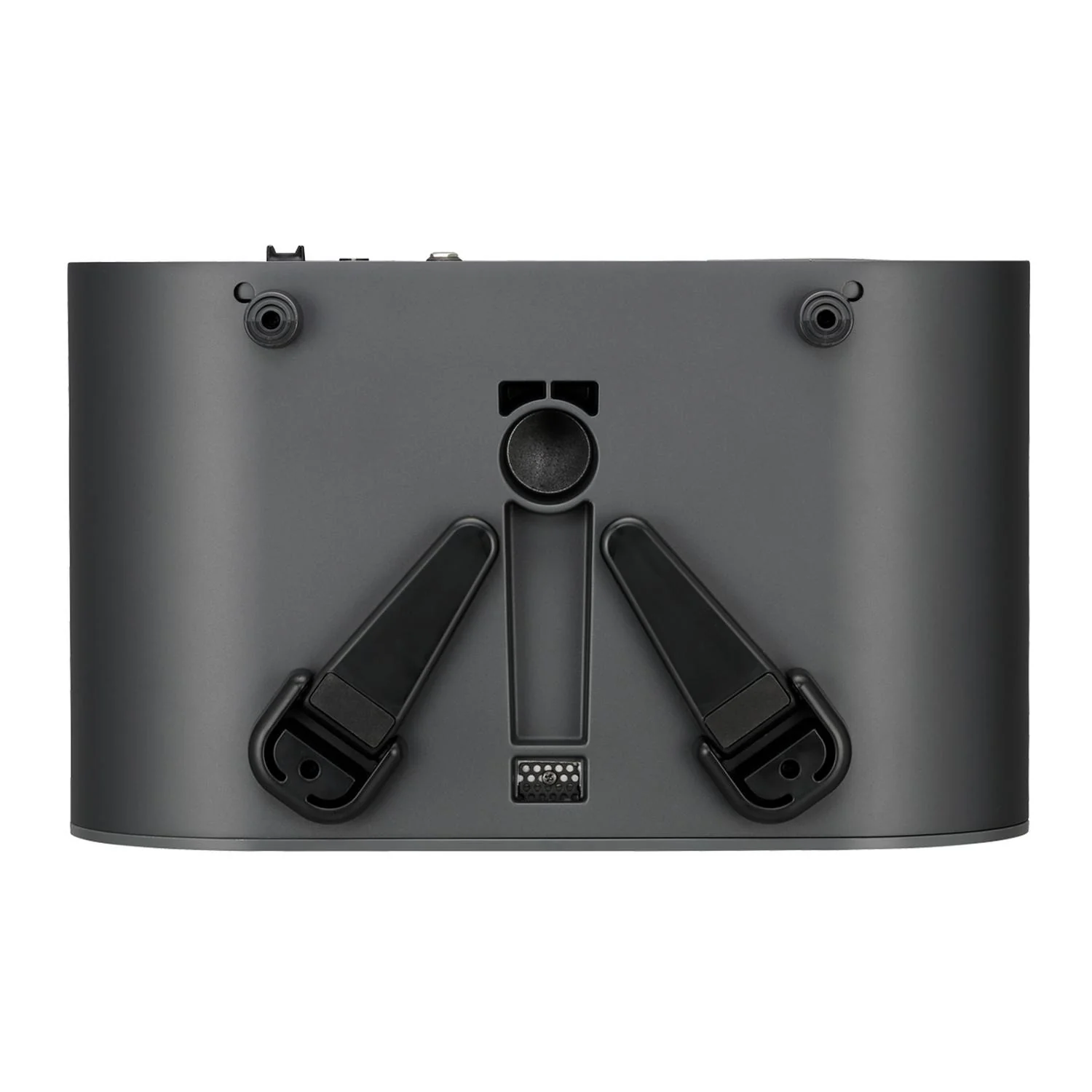

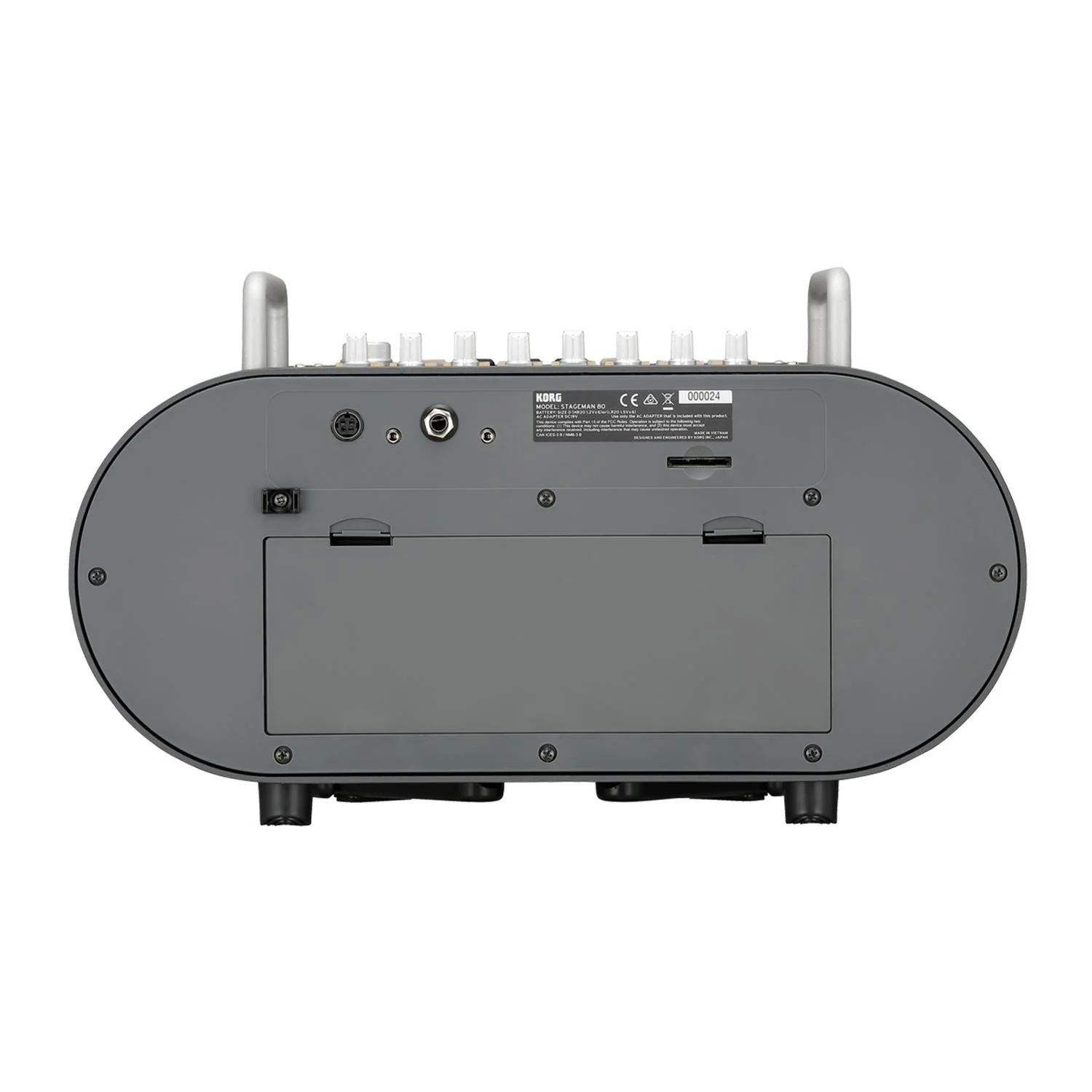

Korg STAGEMAN 80 Rhythm Machine and PA System

You need rhythm for your solo performances. You have a rhythm machine, but you want your performance to feel more “alive.”. The STAGEMAN 80 is a multi-function portable PA amp that will meet those needs. This unit contains a large number of high-quality rhythm patterns that can even respond to tempo change in realistic ways, due to KORG's new "Real Groove Technology." The STAGEMAN 80 can act as your personal drummer to support your live performances or practice sessions; you can even create a rhythm structure that's appropriate for your own song, while using a foot switch to control it in real time. With high-output, high-quality stereo speakers, it can also be used as a live PA. It additionally provides a recorder and audio player, as well as a full-featured mixer. The STAGEMAN 80 lets you perform with optimal sound backed by the ultimate rhythms.

Korg STAGEMAN 80 Features:

• A stereo 80W high-output system provides high-quality sounds
• Rhythm machine function with excellent presence
• Simple-to-use recording and playback functions
• Mixer function that meets a variety of needs
• Acoustage function for added spaciousness
• Convenient tuner and metronome functions
• Foot switch input for greater control during live performance
• Flexibility for any performance location

Korg STAGEMAN 80 Specifications:

Rhythm Function:

Rhythm Styles:

• 24 rhythm styles (8 Beat1, 8 Beat2, 8 Beat3, 8 Beat4 Shuffle, 8 Beat5, Unplug1 Cajon, Unplug2 Conga, Unplug3 Djembe, Oldies, Country1, Country2 Train Bt, Country3 3/4, Rock1, Rock2, Blues1, Blues2, 16 Beat1, 16 Beat2 Shuffle, 16 Beat3, Jazz1, Jazz2 3/4, Latin Jazz, Bossa, Samba)
• Two variations for each rhythm style
• Each variation has three patterns (basic, fill-in 1, fill-in 2)
• Tempo: 48 - 240 bpm
• Chain Function: 30 banks (up to 999 measures can be registered in each)

Recorder Function:

• Recording Format: PCM audio WAV format (file name extension .wav), 44.1 kHz, 16-bit
• Recording Time: Depends on the SD card used; approximately 100 minutes per 1 GB
• Maximum Continuous Recording Time: 3 hours
• Number of Songs: Maximum 50
• Number of Multi-Track Recordings: Depends on the remaining free capacity of the SD card
• Undo/Redo: Once

Player Function:

• Playback Formats: PCM audio WAV format (file name extension .wav) 44.1 kHz, 16-bit, Stereo
• Maximum Data Size (Time): Depends on the memory card used; approximately 100 minutes per 1 GB (for WAV data)
• Maximum Number of Data Files (Number of Folders): Up to 99 songs (per folder); a total of eight folders M1–M8 inside the PLAYER folder can be used
• Playlist Function: 10 banks (up to 24 songs can be registered in each)

Mixer Effect Section:

• Effects: Reverb effect
• Equalizer: BASS, TREBLE
• Other: ACOUSTAGE (wide stereo effect)

Tuner Function:

• Scale: 12-note equal temperament
• Type: Chromatic
• Calibration: 435 - 445 Hz
• Tuning Guide Tone: Three types (guitar, bass, piano)

• Display: 7-segment four-digit LED

SD Card:

• Usable Cards:
• SD card: 1 GB - 2 GB
• SDHC card: 4 GB - 32 GB

Input Jacks:

• MIC IN Jack: XLR-3-32 type, input impedance 4.7 k-ohm, nominal level -43 dBV INPUT 1 Jack,
• INPUT 2 Jack (Guitar, Bass): 1/4" monaural phone jack, input impedance 1 M-ohm, nominal level -26 dBV
• AUX INPUT Jack: 1/8" stereo mini-phone jack, input impedance 10 k-ohm, nominal level -17 dBV
• FOOT SW Jack: 1/4" stereo phone jack, usable foot switch: VOX VFS5 foot switch
• \n

\n
Output Jack:

\n

• \n
• HEADPHONE/LINE OUT Jack: 1/8" stereo mini-phone jack, maximum level 0 dBV, 30 mW, 32 ohm
• Power Amp Output:Maximum 40W x 2

Speakers: 4” 4Ω × 2

Power:

• Power Supply: DC 19V, six D batteries (alkaline or nickel-metal hydride are supported)
• Battery Life: Approximately 20 hours (when using alkaline batteries)
• Approximately 18 hours (when using nickel-metal hydride batteries)
• * Varies depending on the batteries used and the conditions of use
• Power Power Supply DC 19V, six D batteries (alkaline or nickel-metal hydride are supported) Battery Life Approximately 20 hours (when using alkaline batteries)
• Approximately 18 hours (when using nickel-metal hydride batteries)
• * Varies depending on the batteries used and the conditions of use
• Current consumption: 1.4 A

Dimensions (W x D x H):

• With stand folded down: 398 x 242 x 231 mm / 15.67” x 9.53” x 9.09”
• With stand extended: 398 x 310 x 285 mm / 15.67” x 12.20” x 11.22”: Angle 26°
• Speaker stand mount diameter: 35 mm

Weight: 8.4 kg / 18.52 lbs (Excluding batteries)

Others:

• Included Items: AC adapter (DC 19V), Card strap

Made in China
