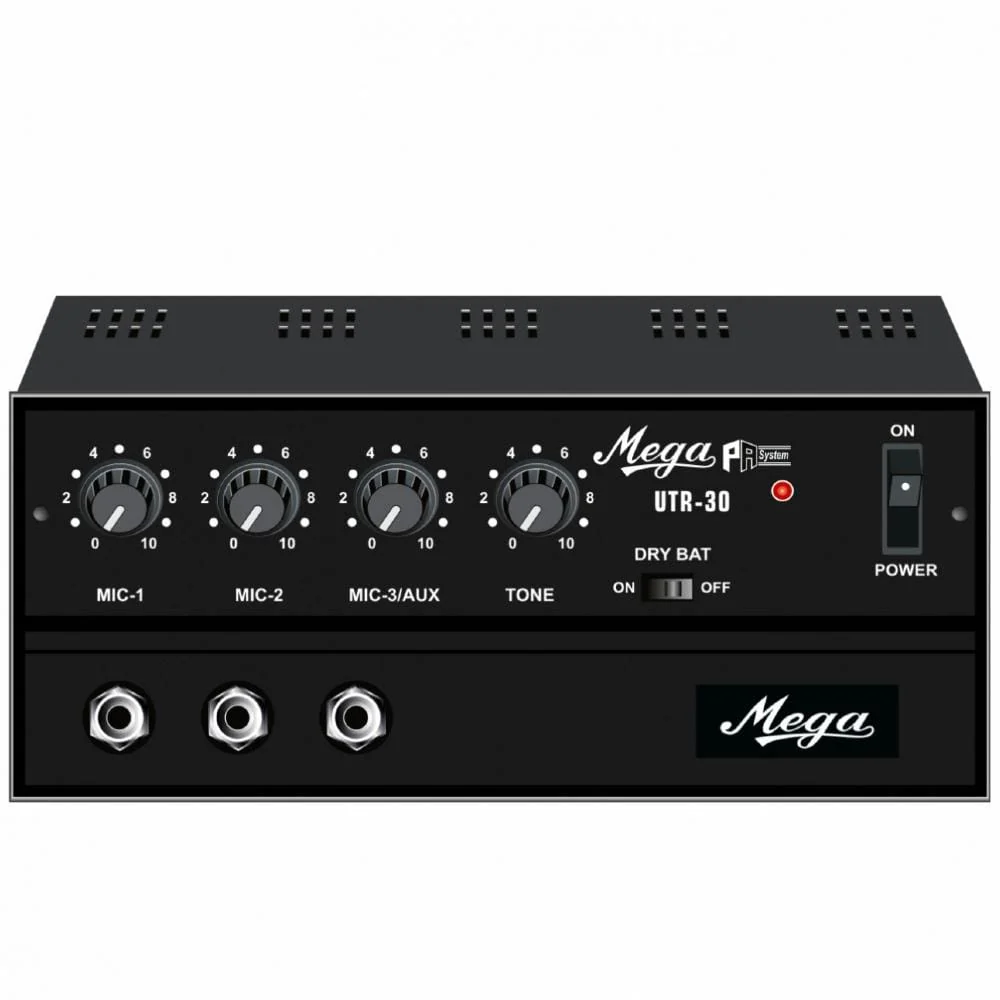

Mega UTR-30 Low Power Mixer Amplifier

Mega UTR-30 Low Power Mixer Amplifier Overview:

Features

• Multiple inputs for 3 Mics / 1 Aux source.
• Cut type tone control.
• Dry battery on/off switch in UTR - 30.
• Portable and ideal for use in electricity failure prone areas.
• External speaker connections are provided for 4,8,16 Ohms and 100V line.
• Multi power source amplifier: AC mains, 12V DC (Car battery) and 12V DC (8 x 1.5 v UM-1 cell).

Power Requirement

• AC: 220-240V 50/60Hz
• DC: 12V (Dry cells UM-1)

Power Output

• 30 W (Max)

Specifications

• Input Channels: 3 Mic, 1 Aux
• Frequency Response: 150-10000 Hz ± 3dB
• Tone Control: Cut type - +_10dB at 10K Hz
• Signal To Noise Ratio: 60dB
• Output Taps For: 4 - 8-16 Ohms each zone
• Weight: 4.4 Kg

Made in India
