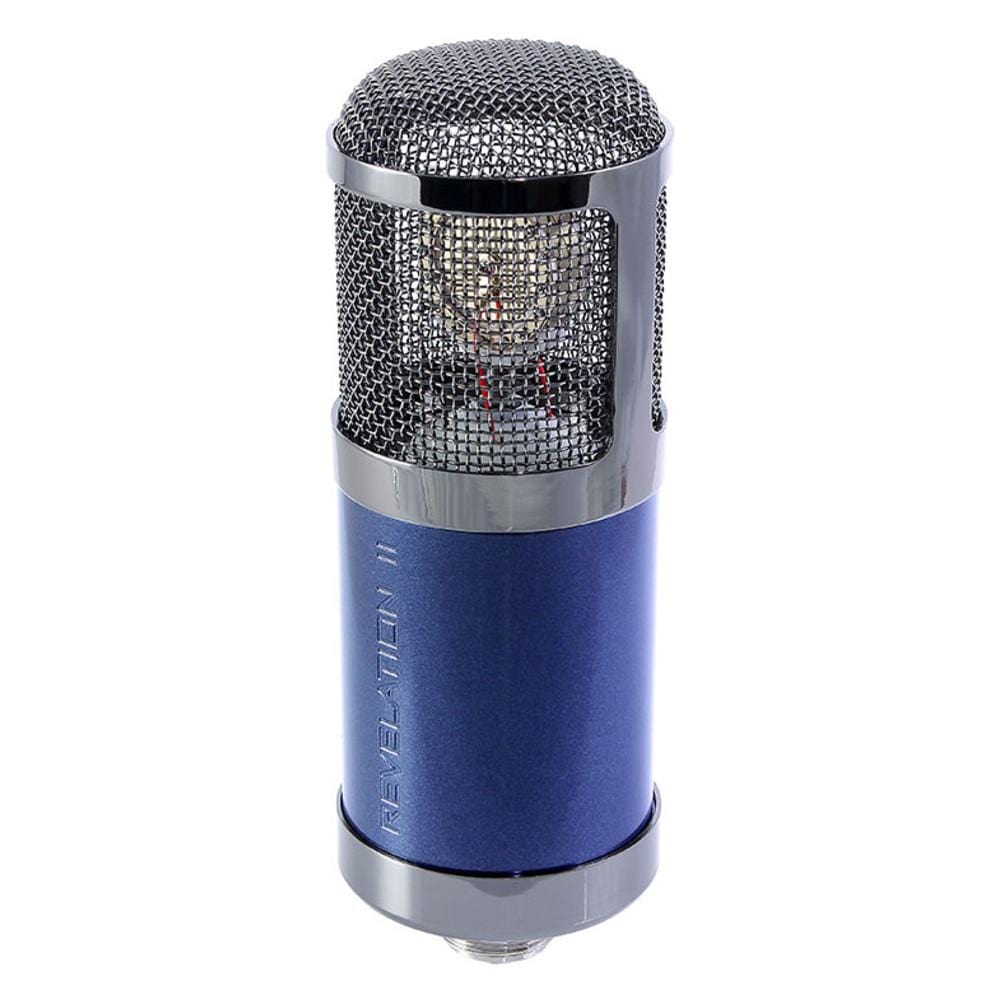

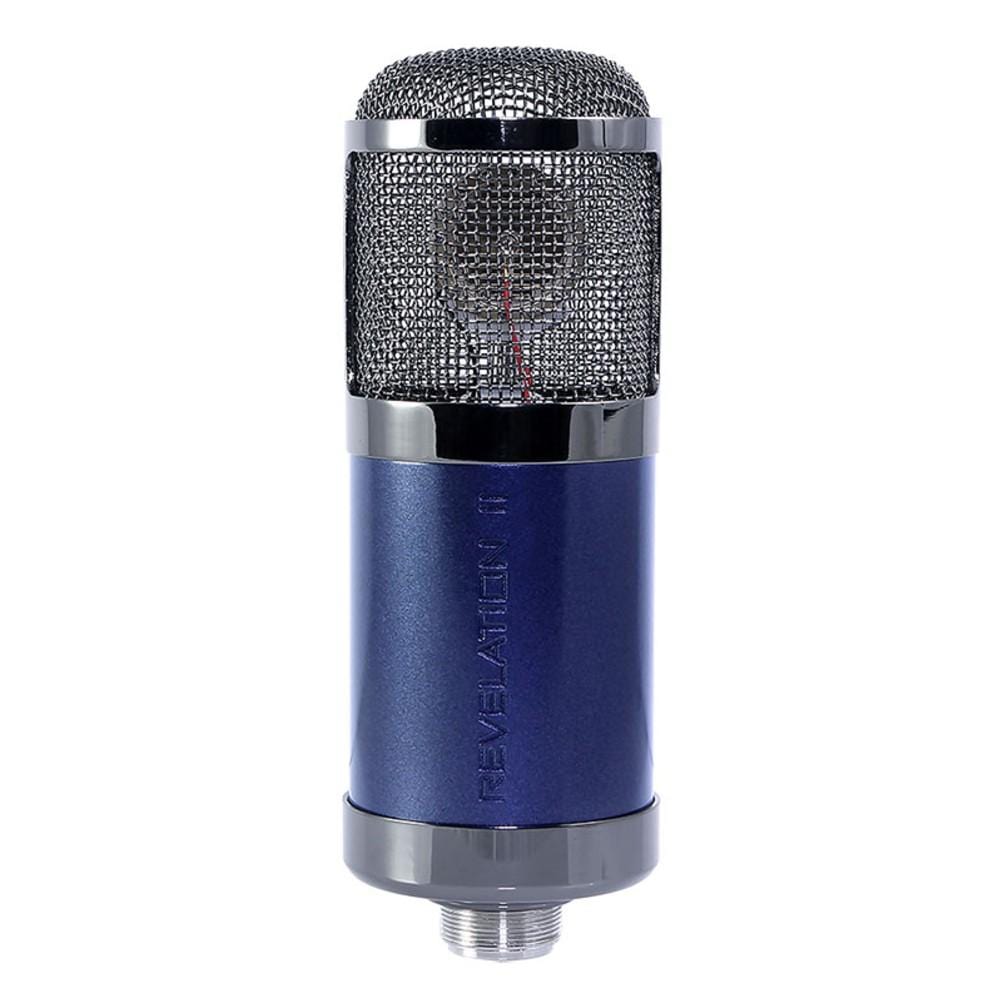

MXL Revelation II Variable Pattern Tube Condenser Microphone

MXL Revelation II Variable Pattern Tube Condenser Microphone Overview:

The MXL Revelation II is a studio microphone that delivers the warmth and intimacy of a classic tube microphone with a lush mid-range providing a unique color and sound to any microphone locker. A dual gold-sputtered, 6-micron diaphragm and hand-selected EF86 pentode tube provide warmth and character giving the Revelation II an iconic sound. The Revelation II's variable selection knob allows for limitless transitions between cardioid, omnidirectional, and figure-8 polar patterns. Whether you record vocals, instruments, percussion or simply use it as a room mic, the MXL Revelation II brings a classic sound in any recording application.

Features:

• Flagship tube microphone
• Variable polar pattern selection
• EF86 Pentode tube
• Natural frequency response attributes to classic sound
• Mogami cable and wiring for exceptional audio fidelity

Specifications:

• Type: Variable Pattern Tube Condenser Microphone
• Diaphragm: Dual gold-sputtered, 6 micron diaphragm
• Tube Type: EF86
• Frequency Response: 20 Hz - 20 kHz
• Polar Pattern: Continuously variable
• Sensitivity: -40 dB re 1 V/Pa
• Output Impedance: 140 ohms
• Attenuation Switch: 0 dB, -10 dB
• High Pass Filter: 12 dB/octave @ 125Hz
• Equivalent Noise: -18 dB (A-weighted IEC 651)
• S/N Ratio: 76 dB
• Max SPL for .5% THD: 138 dB SPL
• Power Requirements: Revelation Power Supply Unit 110/220 VAC, 50/60Hz
• Size: 7 1/2" X 2 1/2"/190mm x 63.5mm (mic only)
• Weight: 2 lbs / 907g (mic only)
• Metal Finish: Dark Violet and Black Chrome

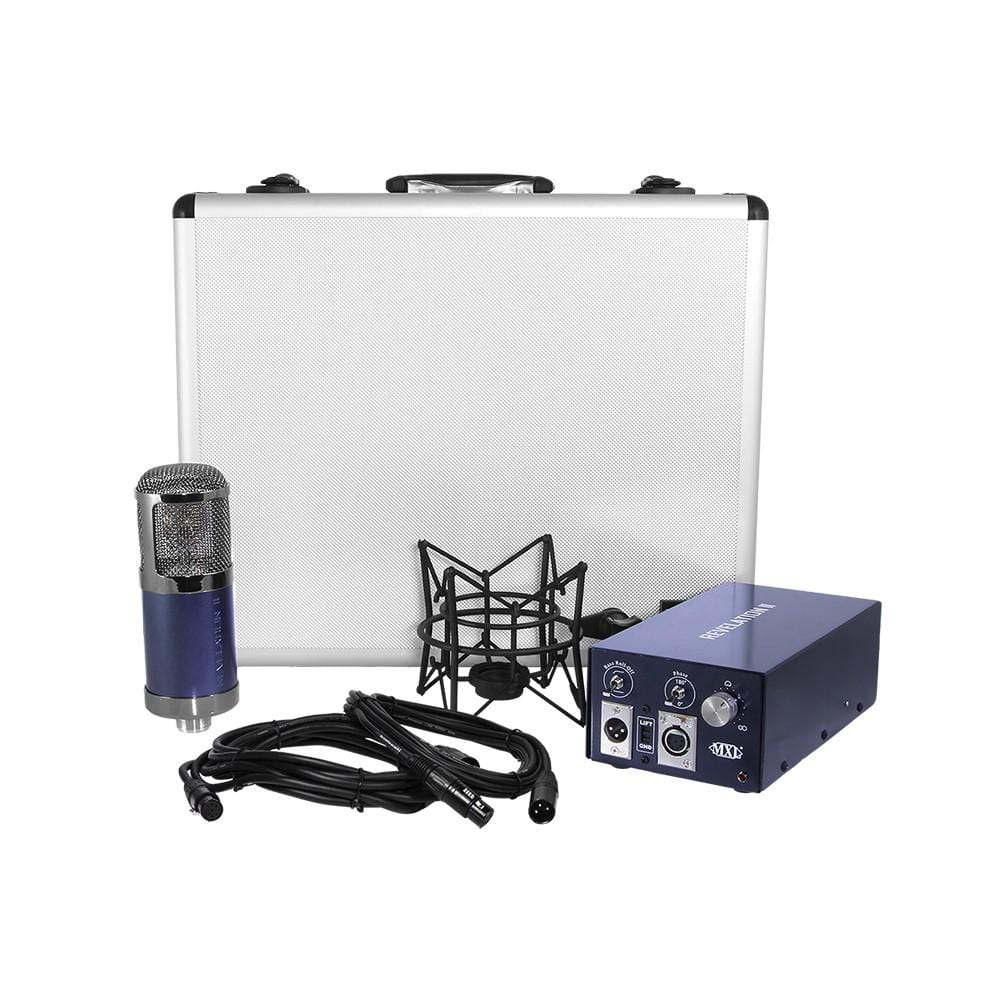

Included Accessories:

• 7-pin Mogami Cable
• Aluminum Flight Case
• MXL Microfiber Cleaning Cloth
• XLR Mogami Mic Cable

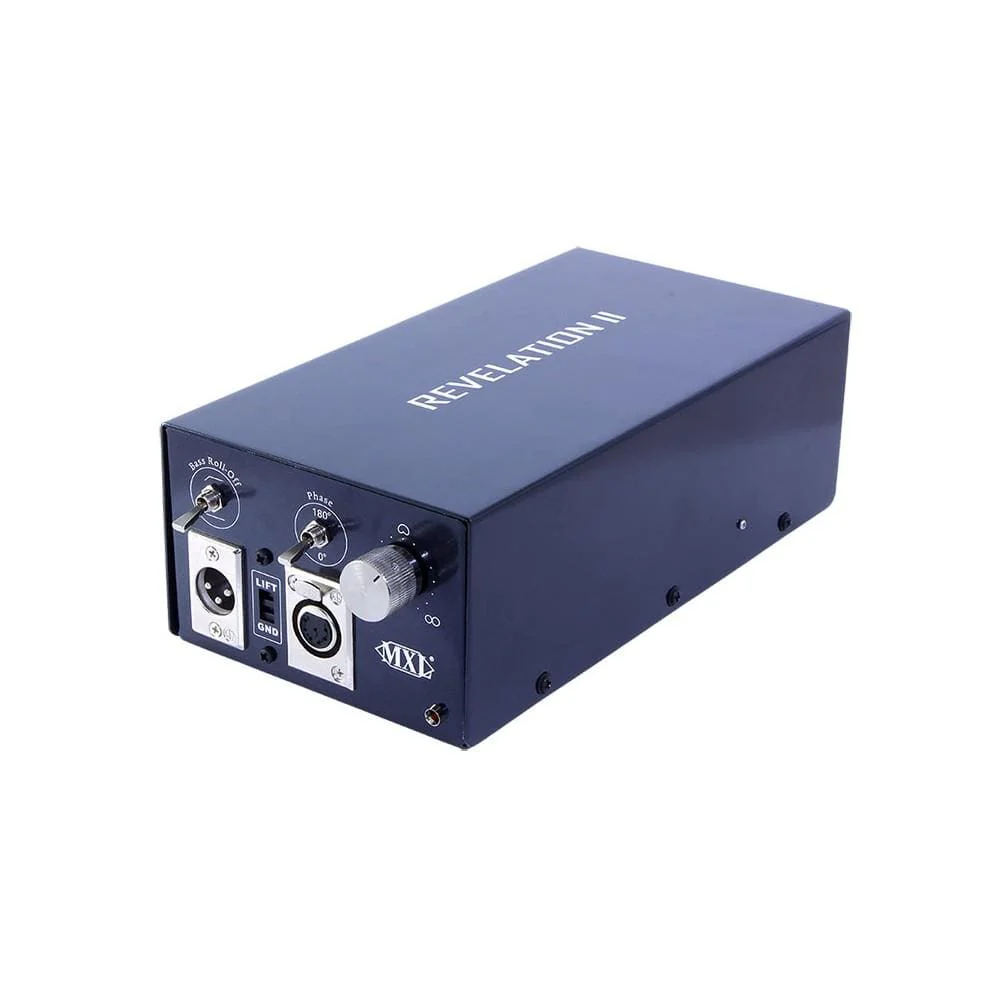

• Revelation II Power Supply
• Revelation II Shockmount

Made in China
