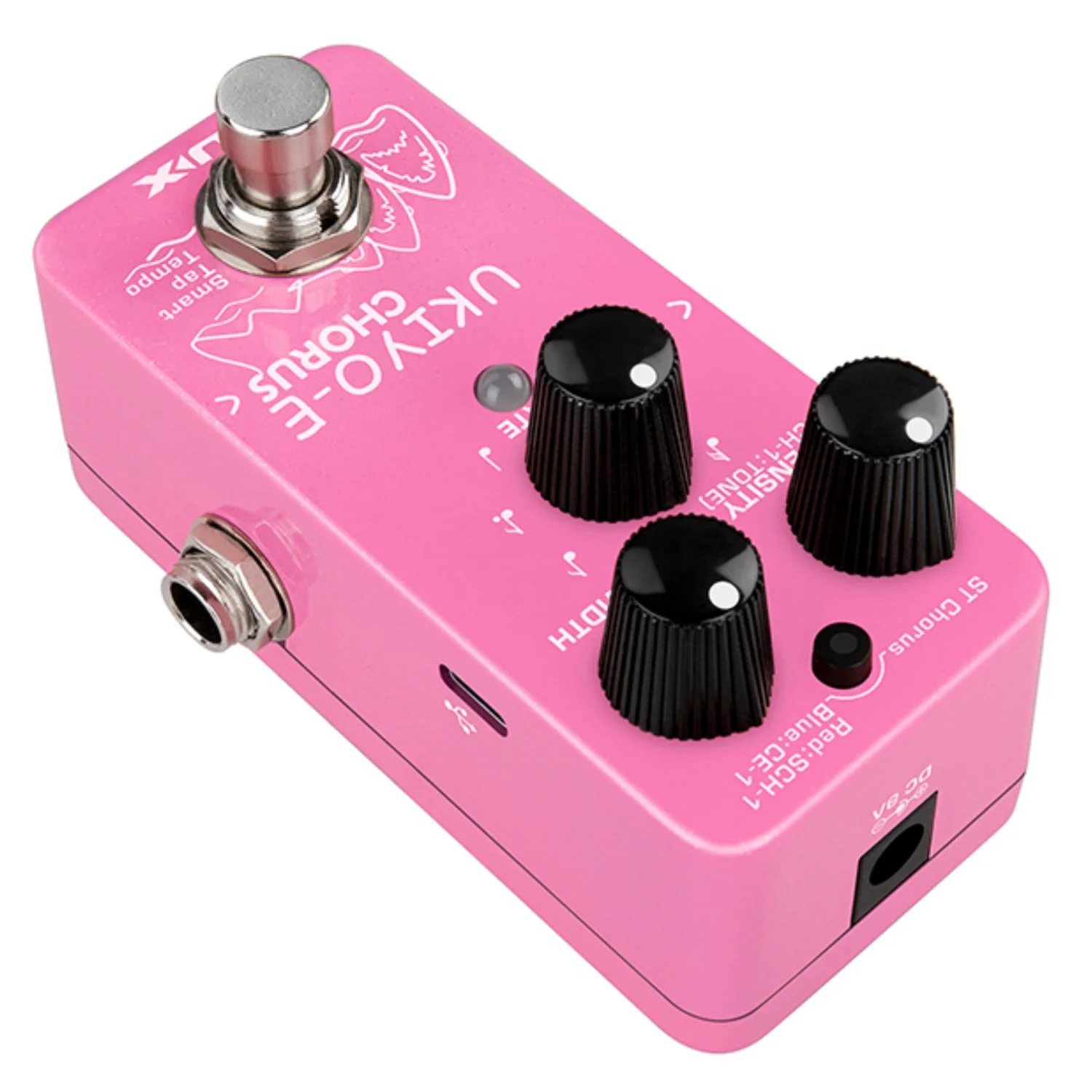

Nux NCH-4 Ukiyo-E Chorus Effect Pedal

Nux NCH-4 Ukiyo-E Chorus Effect Pedal Overview:

UKIYO-E CHORUS (NCH-4) is a mini chorus pedal with 3 different chorus models including ST Chorus, SCH-1, and CE-1. You can switch the models by tapping the tap switch. Old-school Analog Chorus has always been warm but it was hungry for dynamic completion.

NUX's modern-tech DSP yields a perfect combination of both worlds: analog and digital. To achieve all of the UKIYO-E Chorus objectives, our engineers had to develop an algorithm that mimics the principles of BBD chips - the key component of Analog Chorus effects. UKIYO-E's active low-frequency provides the Traditional Analog Chorus Tone discerning ears have come to expect in a true analog chorus pedal. Dynamic Tone and Noise-Elimination ability put UKIYO-E into a completely separate category from cheap analog pedals.

Quality-grade BBD chips in large mass have become incredibly rare, so this method is not practical for making an affordable analog chorus device.

Using DSP technology, NUX is able to offer a mini-pedal with a contrasting array of chorus tones.

Features:

• 3 chorus models in the mini enclosure.

• ST Chorus: Gorgeous sounding chorus.

• SCH-1: Clean chorus to a pretty realistic Leslie effect.

• CE-1: Special warmth of a rich jazz atmosphere.

• Sub-division with Smart Tap Tempo.

• True-bypass or Buffer-bypass(Trails).

• Supports Stereo.

• Low power consumption. (less than 100mA)

• Analog dry signal for low noise and zero latency.

Specifications:

• Input Impedance：1MΩ

• Output Impedance：10kΩ

• Dynamic Range: 103 dB

• DSP Processing: 48KHz / 32-bit

• A/D D/A Sampling Rate: 48KHz / 24-bit

• Power：9V DC(Negative tip, Optional ACD-006A adapter)

• Current Draw：less than 100mA

• Dimensions：94(L)X51(W)X53(H)mm

• Weight：175g
