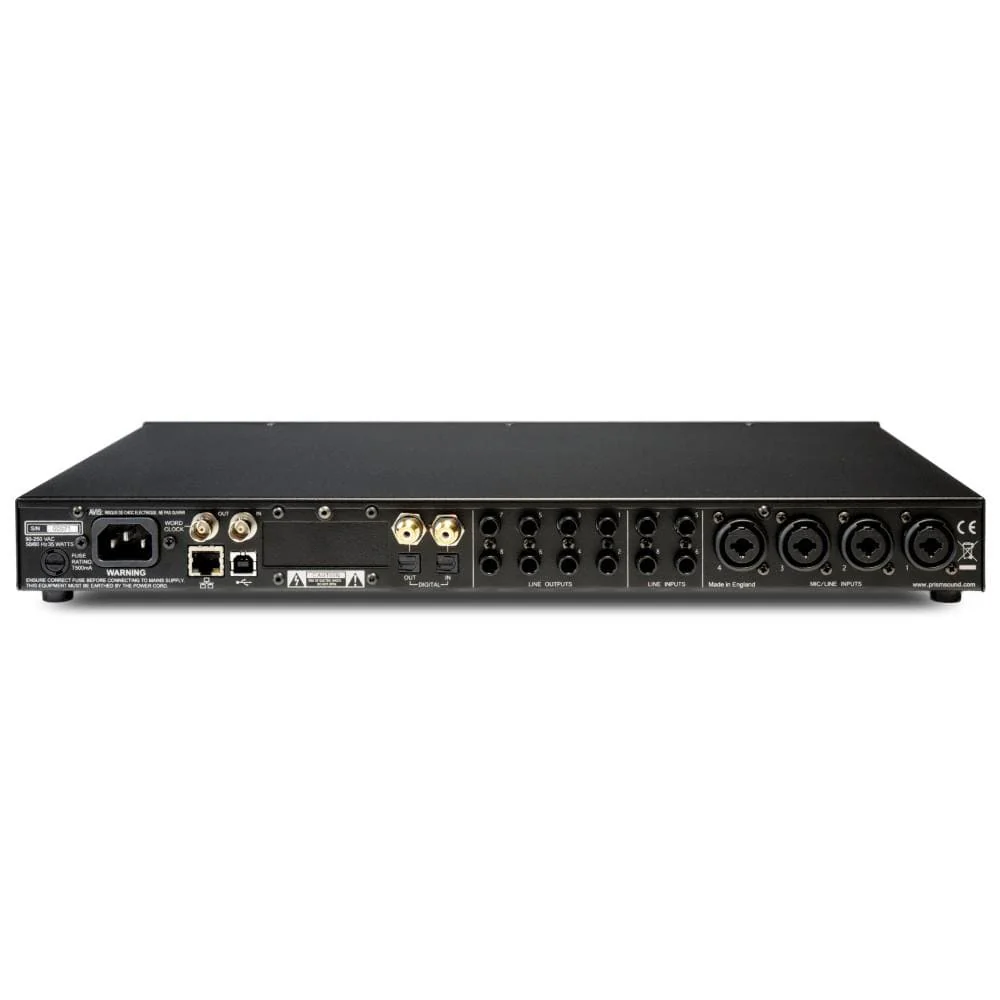

Prism Sound Titan Multichannel Audio Interface With MDIO Expansion
Prism Sound Titan Multichannel Audio Interface With MDIO Expansion Overview:
Titan and Atlas are world class multi-track interfaces offering flexible expansion and unsurpassable sonic clarity. Using the latest generation of Prism Sounds trusted conversion, Titan is ideal for music and sound recording, multi-tracking, overdubbing, stem-based mastering, analogue summing and critical listening applications.
UNSURPASSED CLOCKING AND JITTER REJECTION
Prism Sounds history in developing test and measurement equipment for the audio industry has allowed our engineers to get a much deeper understanding of digital clocking and its associated issues.
DIGITAL MIXER WITH FLEXIBLE MONITORING
Titan has a powerful built-in digital mixer that can be configured to provide a multitude of ultra low latency feeds, Including foldback to performers, stereo and surround outputs.
FLEXIBLE I/O
Titan has a maximum capability of 18 concurrent input and output channels, offering 8 analogue recording channels, 8 monitoring outputs, stereo digital input and output on a phono connector plus concurrent optical digital I/O ports.
FUTURE PROOF CONNECTIVITY
With a standard USB connection Titan can connect to the widest range of computers today and for the foreseeable future. Add to this the option of ProTools HDX and Dante modules for the most flexible and professional solution.
MDIO
MULTI-CHANNEL I/O EXPANSION
- In an ever changing world of I/O connectivity, the MDIO expansion slot allows your Prism Sound interface to remain relevant, increasing its lifespan and bring a much better return on your investment.
- Both options allow you to stack multiple Titan or Atlas providing sample accurate phase locked audio between multiple units.
Specifications:
DIMENSIONS
- 1U 19inch rack mountable
- (rubber feet and rack ears supplied)
- Table top (inc feet): W: 440mm D: 290mm H: 50mm
- Rack-mount (inc ears):
- W: 483mm D: 290mm H: 44.5mm
- 90-250VAC, 50/60Hz internal power supply
- IEC 6A connector
- 35W 0.5A(T) 20mm ceramic fuse
- 4 x combo connectors with XLR sockets for mic input and 6.3mm TRS jack sockets for line input (balanced or unbalanced)
- 1 x RCA
- 1 x TOSLINK for S/PDIF or ADAT Optical input
- 8 x 6.3mm TRS jack sockets (balanced or unbalanced)
- 1 x RCA
- 1 x TOSLINK for S/PDIF or ADAT Optical output
Made in UK
Original: $406,990.00
-70%$406,990.00
$122,097.00
Description
Prism Sound Titan Multichannel Audio Interface With MDIO Expansion Overview:
Titan and Atlas are world class multi-track interfaces offering flexible expansion and unsurpassable sonic clarity. Using the latest generation of Prism Sounds trusted conversion, Titan is ideal for music and sound recording, multi-tracking, overdubbing, stem-based mastering, analogue summing and critical listening applications.
UNSURPASSED CLOCKING AND JITTER REJECTION
Prism Sounds history in developing test and measurement equipment for the audio industry has allowed our engineers to get a much deeper understanding of digital clocking and its associated issues.
DIGITAL MIXER WITH FLEXIBLE MONITORING
Titan has a powerful built-in digital mixer that can be configured to provide a multitude of ultra low latency feeds, Including foldback to performers, stereo and surround outputs.
FLEXIBLE I/O
Titan has a maximum capability of 18 concurrent input and output channels, offering 8 analogue recording channels, 8 monitoring outputs, stereo digital input and output on a phono connector plus concurrent optical digital I/O ports.
FUTURE PROOF CONNECTIVITY
With a standard USB connection Titan can connect to the widest range of computers today and for the foreseeable future. Add to this the option of ProTools HDX and Dante modules for the most flexible and professional solution.
MDIO
MULTI-CHANNEL I/O EXPANSION
- In an ever changing world of I/O connectivity, the MDIO expansion slot allows your Prism Sound interface to remain relevant, increasing its lifespan and bring a much better return on your investment.
- Both options allow you to stack multiple Titan or Atlas providing sample accurate phase locked audio between multiple units.
Specifications:
DIMENSIONS
- 1U 19inch rack mountable
- (rubber feet and rack ears supplied)
- Table top (inc feet): W: 440mm D: 290mm H: 50mm
- Rack-mount (inc ears):
- W: 483mm D: 290mm H: 44.5mm
- 90-250VAC, 50/60Hz internal power supply
- IEC 6A connector
- 35W 0.5A(T) 20mm ceramic fuse
- 4 x combo connectors with XLR sockets for mic input and 6.3mm TRS jack sockets for line input (balanced or unbalanced)
- 1 x RCA
- 1 x TOSLINK for S/PDIF or ADAT Optical input
- 8 x 6.3mm TRS jack sockets (balanced or unbalanced)
- 1 x RCA
- 1 x TOSLINK for S/PDIF or ADAT Optical output
Made in UK
