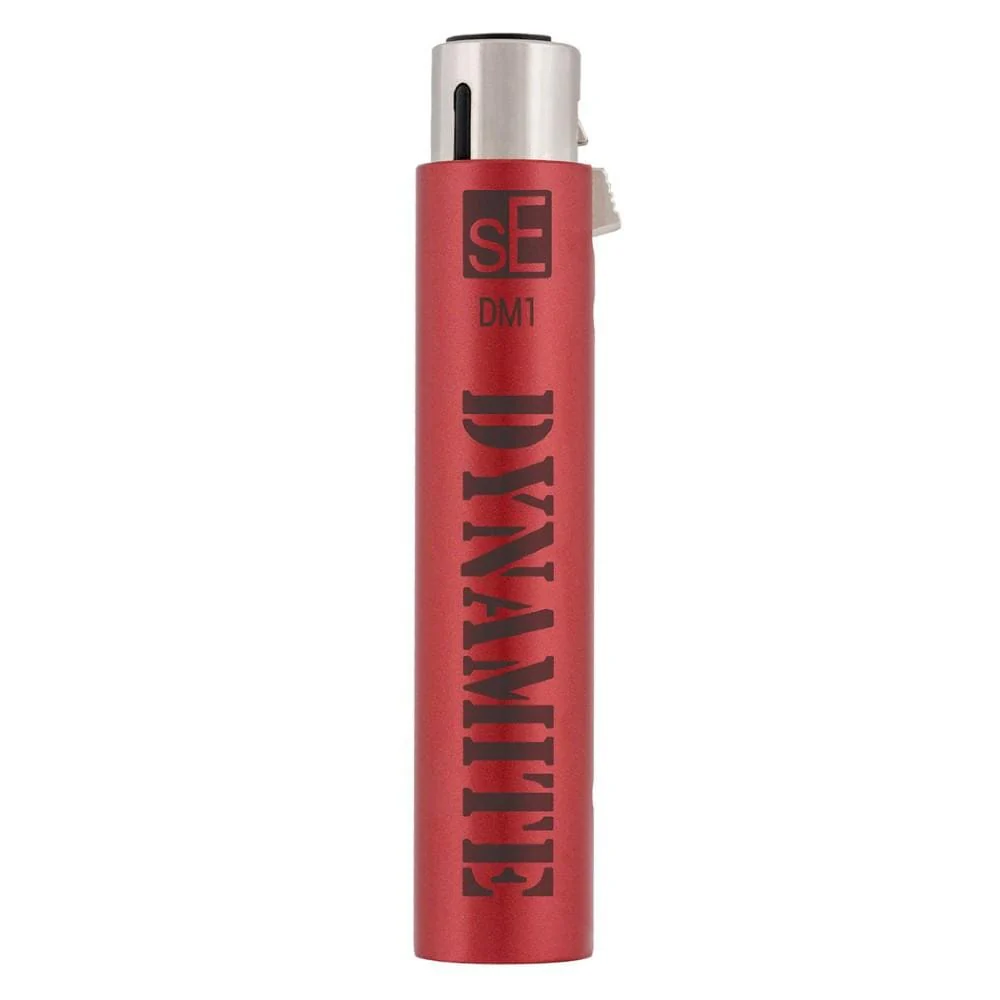

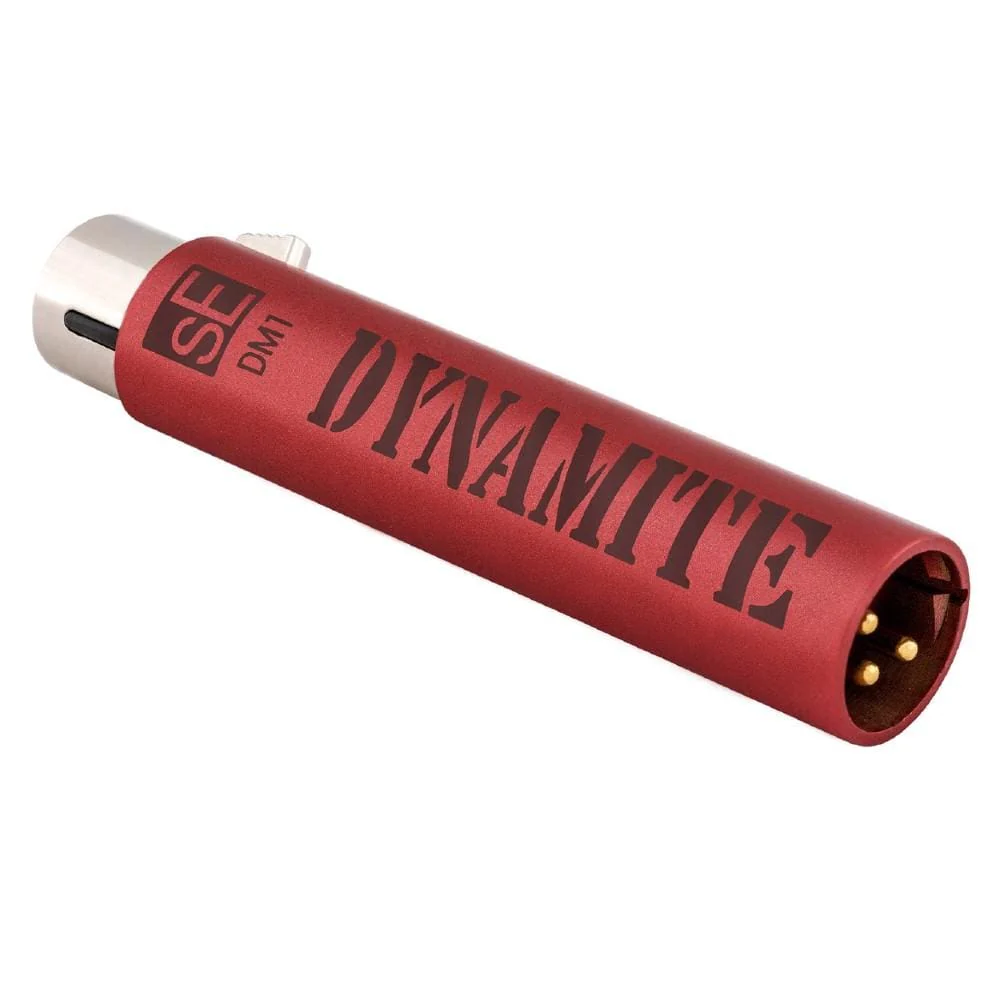

sE Electronics DM1 Dynamite Active Inline Microphone Pre Amplifier

The DM1 DYNAMITE is an ultra-slim active inline preamp designed to seamlessly integrate between your microphone and mic preamp. It delivers an impressive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones, making it ideal for podcasting, recording, or live sound applications.

Key Features:

• +28dB of Consistent, Clean Gain: Independent of load, ensuring reliable performance.
• Sophisticated Class-A Design: Uses high-grade FETs for low noise and superior sound quality.
• Transformerless Construction: Ensures pristine audio without coloration.
• Dedicated Output Buffer Amplifier: Maintains gain consistency regardless of load impedance or cable length.
• Extremely Low Output Impedance: Capable of driving long cable runs, reducing susceptibility to RF interference, buzz, and hum.
• Rugged All-Metal Housing: Slim, durable design with a premium finish, perfect for on-stage and studio use.
• Gold-Plated XLR Connectors: Provides reliable and loss-free signal connections.

Why Choose DM1 DYNAMITE?

Whether you’re a podcaster, recording engineer, or live sound technician, the DM1 is the perfect tool to boost the signal from your passive microphones. It reduces interference and ensures a significantly improved level to your preamp without adding noise or coloration.

• Neutral, Balanced Sound Quality: Ideal for professional audio applications.
• Consistent Performance: Gain remains stable regardless of connected load.
• Low Noise: State-of-the-art electronics ensure the lowest noise in its class.
• Versatile and Reliable: Suitable for demanding on-stage applications and harsh environments.

Specifications:

• Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)
• Gain: 28 dB (load 1kOhms)
• Max Output Level: 8.3 dBV (2.6 V at 0.5% THD)
• Output Noise Level: 9 μV (JIS-A)
• Powering: 48 Volts phantom power (IEC 61938 standard)
• Electrical Impedance: 135 Ohms
• Recommended Load Impedance: >1k Ohms
• Current Consumption: 3.0 mA
• Connectivity: 3-pin male/female XLR connectors
• Dimensions: Diameter: 19 mm (0.75 in.), Length: 95.5 mm (3.76 in.)
• Weight: 80 g (2.82 oz.)

System Requirements:

• Input: Passive microphone (dynamic or ribbon)
• Output: Preamp, mixer, or audio interface providing 48V phantom power

Limitations:

• Not Suitable for Phantom-Powered Microphones: This includes condenser microphones and active ribbon microphones.

In the Box:

• DM1 DYNAMITE preamp
• sE Logo Sticker
• User Manual with Warranty Card

Optimize Your Audio with DM1 DYNAMITE

For optimum results, connect the DM1 directly to your microphone’s output. If using a cable, ensure it is as short as possible to maintain the best performance. Boost your passive microphones' signal and experience unmatched clarity and consistency with the DM1 DYNAMITE.

Elevate your audio setup with the DM1 DYNAMITE – the ultimate solution for clean, powerful gain in any setting.

Made in China
