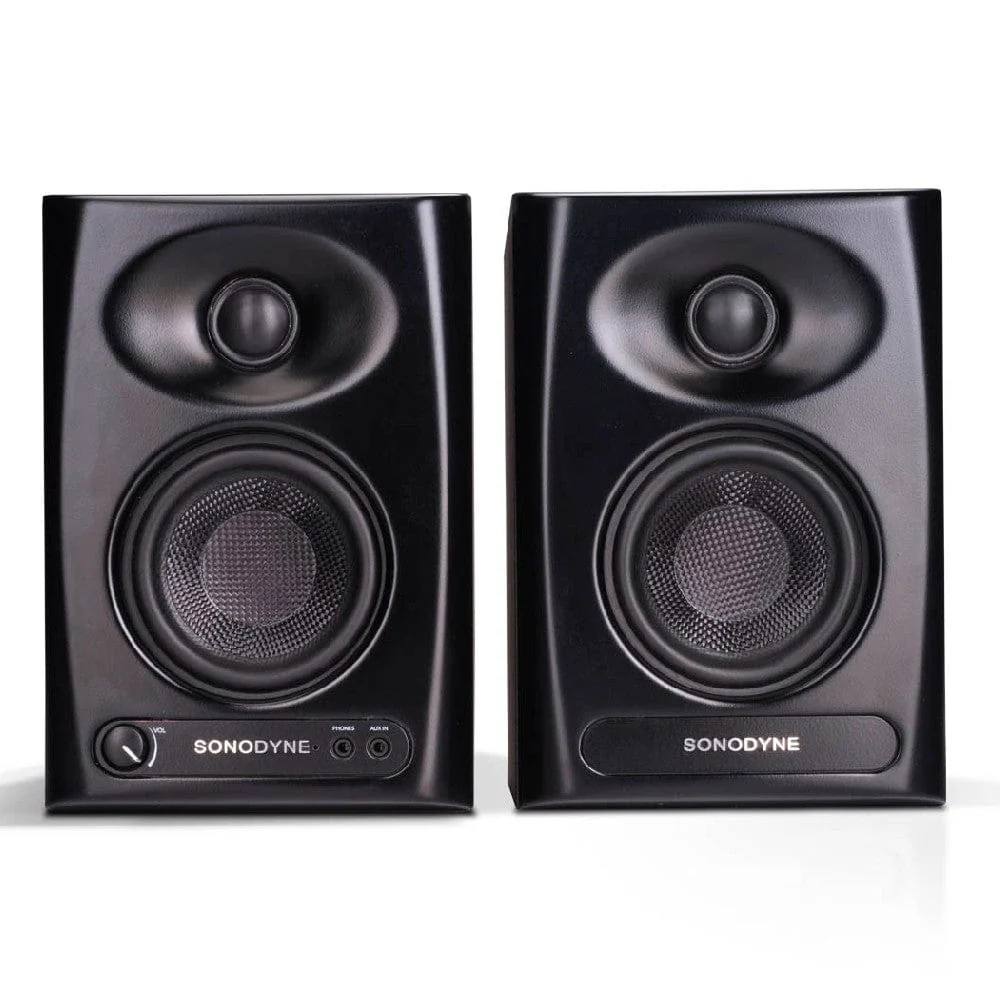

Sonodyne PM 4040 Near Field Monitors Speaker - Pair

Sonodyne PM 4040 Near Field Monitors Speaker - Pair Overview:

The PM 4040 is a cost-effective solution for high-quality near-field monitoring

The stereo set comprises a pair of monitors one active and the other passive. The cabinet material is MDF and the front baffle has a unique molded shape. The 1-inch silk dome neo-magnet tweeter is nested in an elliptical custom waveguide for a smooth response and wide directivity in the horizontal plane but controlled directivity in the vertical plane. The LF is a 4” glass fiber cone woofer. The system is powered by a 2-channel class D amplifier.

The resulting sound is detailed with a wide sweet spot and frequency response at appreciable loudness.

There are both unbalanced and balanced inputs and also a headphone output. A master level controls other overall volumes of the pair.

Highlights

• MDF cabinet with molded plastic baffle
• Custom HF waveguide
• Silk dome HF transducer
• Glass Fibre LF transducer
• 2-channel class D amplifier
• Max SPL of 109dB peak per pair
• 2 unbalanced and 1 balanced in
• Headphone out

Specifications:

Description:

• 2-Way Stereo Active And Passive Monitor

Transducer Complements:

• Lf: 4" Glass-Fiber Cone Woofer
• Hf: 1" Silk-Dome Neodymium Magnet Tweeter With Elliptical Waveguide Built Into Front Panel"

Enclosure Type:

• Vented Through Rear-Firing Aerodynamic Port

Enclosure Material:

• MDF

Frequency Response (± 3Db):

• 70Hz ~ 20Khz

Max Spl Half Space:

• 109Db Peak Per Pair

Crossover Frequency:

• 2.5Khz

Amplifier Type:

• Class D

Output Power Rms:

• 30W + 30W

Input Level For 90Db Spl @ 1M:

• 0Dbu

Input Impedance:

• 22K?

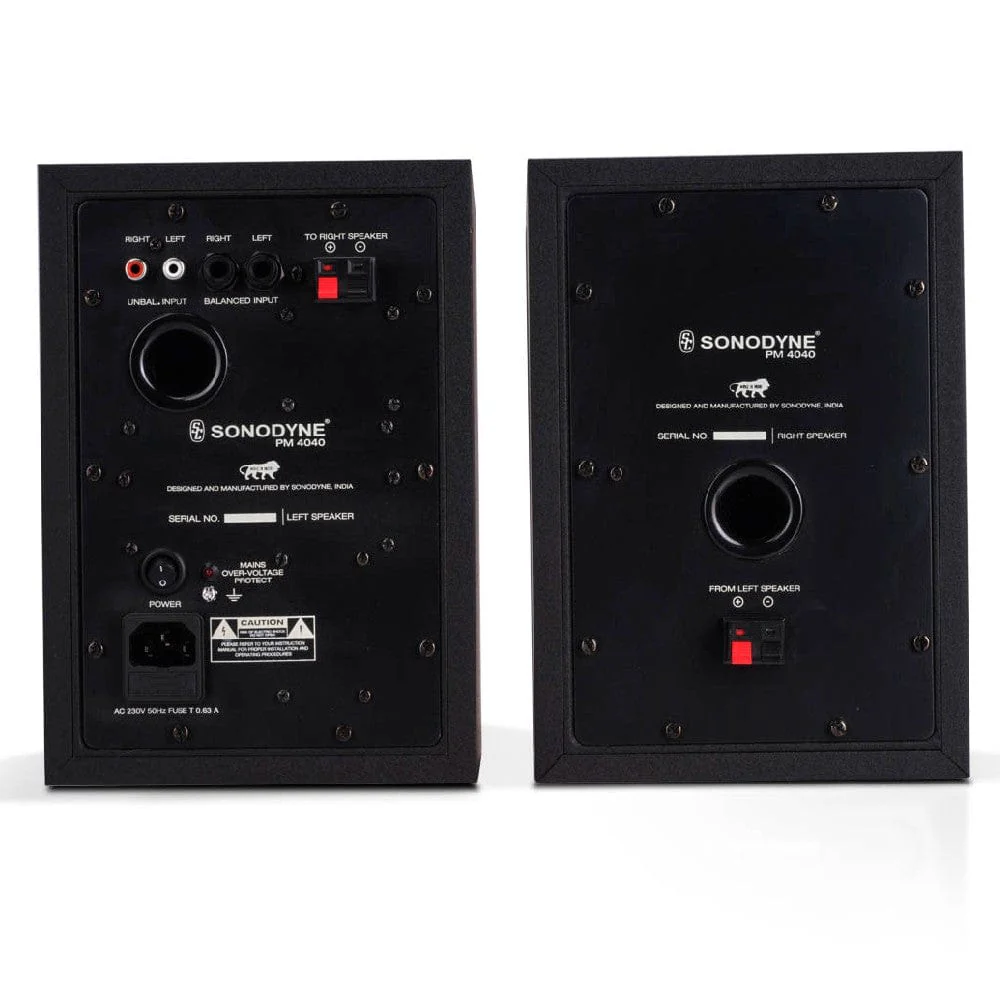

Input:

• Balanced Inputs Via Trs Socket At Rear
• 2 Unbalanced Inputs Via Rca Socket At Rear
• 1/4Th Phones Socket At Front"

Output:

• Snap-Type Speaker Terminal For Connecting To Passive Speaker

Controls & Switches:

• Rear: Power Switch
• Front: Volume Control

Indicator:

• Power On /Off On Front Panel

Power Requirement:

• 230V Ac ± 10% 50Hz

Protection:

• Over Current Overheat Rfi Switch On-Off Mains Over-Voltage

Indicators:

• Power On /Off Overvoltage Protect

Finish:

• Black Matt

Mechanical Dim. (Hxwxd) Mm:

• Product: 230Mm X 160Mm X 190Mm
• Shipping: 285Mm X 400Mm X 245Mm

Net Weight:

• Passive Speaker: 2.6Kg
• Active Speaker: 3.2Kg
