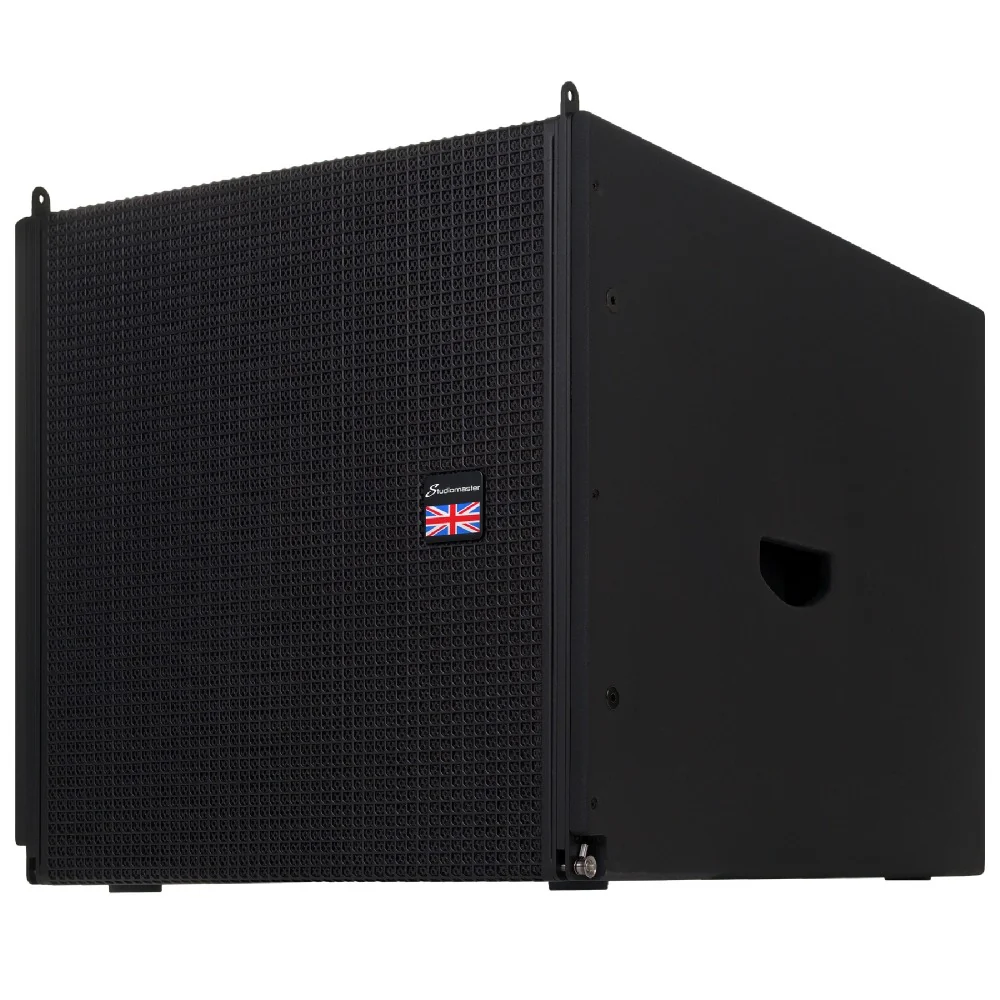

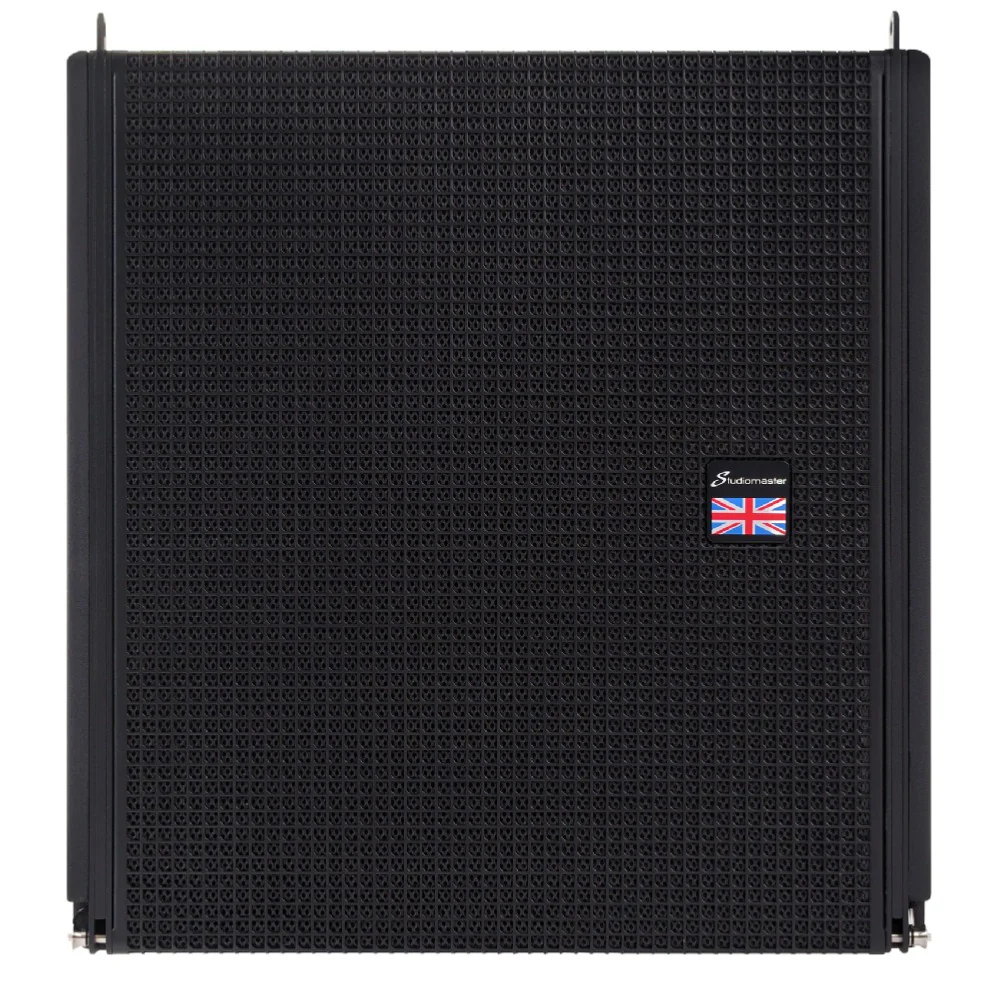

Studio Master V26SA Active Subwoofer Line Array

Studio Master V26SA Active Subwoofer Line Array Overview:

The new V26 system is a compact active vertical array system, designed for stacking or flying.

3 cabinets make the MF/HF, securely locking to each other with adjustable angles between 0 and 8 degrees. Each cabinet is active with built in high performance amplification and DSP control, giving you the ability to adjust crossover points, gain, eq, delay and threshold, along with program memories so different configurations can be easily recalled.

Light weight at only 8.5kg and a superb dynamic margin is gained by the unique design of the array cabinets. With two 6.5” MF drivers and eight 1” magnetic neodymium dome tweeters set in a coaxial array at the front of the cabinet.

The 15” active sub with large 4” / 100mm voice coil delivers excellent low

• V26SA 1 x 15" LF Enclosure

• High Performance 1x15" LF drivers with 4" / 100mm Voice Coil

• Integrated flying brackets for stacking or flying complete system

• Integrated 1200W power amplifier and DSP

• Adjustable Suspension system and Convenient Scoop handles

Specifications:

• MAX Spl: 130dB

• Amp Power: 1200W

• Weight: 41kg

• Cabinet type: active line array woofer

• Frequency response: 40Hz-150Hz (-10dB)

• Coverage (hxv): -

• LF Driver: 1x15"/100mm VC

• MF Driver: -

• HF Driver: -

• DSP:  gain,eq,Crossover,delay,threshold

• Crossover frequency: DSP Controlled

• Vertica; spread angle: -

• Dimensions(wxhxd): 474x506x673mm

• Weight (net): 41kg
