Studiomaster V10 Passive Hf/Mf Waterprood Line Array

Studiomaster V10 Passive Hf/Mf Waterprood Line Array Overview:

The V10 compact line array system, comprising 2×10″ Mid/Tops and 2×15″ Low mids to
form your array, complimented by 2×18″ Sub bass cabinets to complete the system.
Available in both active and passive variants. The V10 systems are weatherproof and
feature very high SPL levels, with peak SPL in excess of 138dB.

Compact design with a high performance versus cost ratio, high SPL, superb intelligibility, low distortion and a flexible configuration. Two way linear sound dispersion technique to provide clear rich sounds. Low/medium frequency driver with ultra low distortion to give high performance with a wide dynamic range. Custom high quality titanium and neodymium HF compression driver. Super Hi-Fi sound from the flat phase response Birch plywood cabinet coupled with CNC routed slotted structure to give a great sound and extreme strength and rigidity.

The V10 active models feature not only high power lightweight CLASS D amplifier modules along with durable power supply units, but also each cabinet is equiped with a
comprehensive 56bit 96kHz DSP, featuring gain, crossover, phase, delay, unique limiting,
and three useful default program settings.

• MAX SPL

• PEAK

• PGM

• RMS

• WEIGHT

• Cabinet type

• Frequency response

• Sensitivity 1w@1m

• Coverage (h x v)

• LF Driver

• HF Driver

• Impedance

• Crossover frequency

• Vertical spread angle

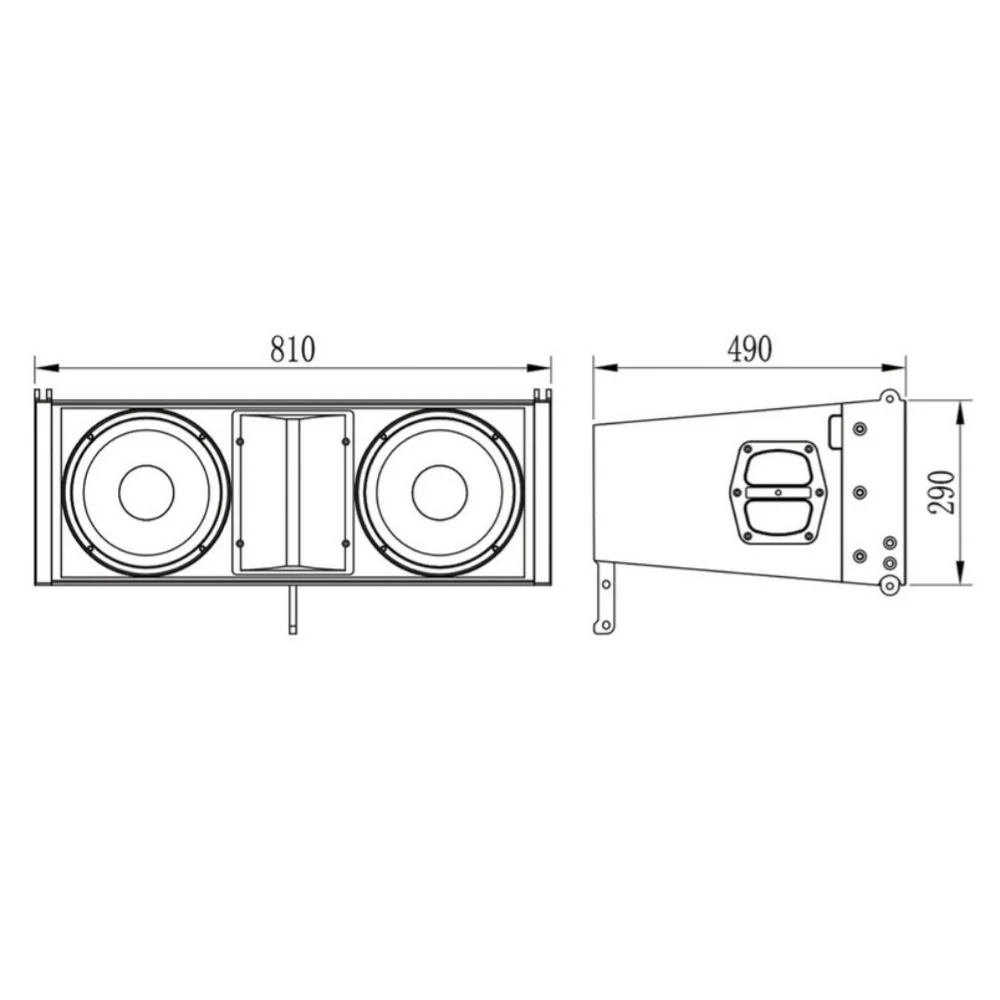

• Dimensions (wxhxd)

• 137dB

• LF 2800W / HF 320W

• LF 1400W / HF 160W

• LF 700W / HF 80W

• 28kg

• 2-way passive line array

• 70Hz – 20kHz

• LF 102dB / HF 110dB

• 120 x 10 degree

• 2 x 10” NdFeB

• 2 x 1.75” / 44mm VC NdFeB

• LF 8 ohm / HF 16 ohm

• 0-10 degree (1 degree step)

• 810 x 290 x 490mm
