Telefunken Usa TF 39 Copperhead Deluxe Large Diaphragm Tube Condenser Microphone

Telefunken Usa TF 39 Copperhead Deluxe Large Diaphragm Tube Condenser Microphone Overview:

The TF39 Copperhead Deluxe is an expansion of the “Copperhead” sound with the addition of a dual membrane K67-style capsule, allowing for 3-pattern selection between cardioid, omnidirectional, and figure-8. This added feature set gives the TF39 greater flexibility and options in the studio. Sonically and component-wise, the two microphones are otherwise the same.

Circuit Design:
The TF39 features a new old stock American-made 5654W vacuum tube, all-brass K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF39 a trusty go-to choice.

Key Features:

• Designed and assembled by hand in the USA
• Pleasant, natural mid range
• Extended low frequency response
• Stand out antique copper finish
• Premium EU-made Lundahl transformer

Applications

• Natural vocals, bluegrass, folk, and Americana styles
• Electric guitar
• Drums: Kick Out, Overheads, & Room
• Saxophone
• Upright piano
• Banjo

Audio Comparison:
Listen to the distinct voices of the Alchemy Microphone Series; the "Copperhead" sound of the TF29 and TF39, the "German" voiced TF47, and the "Austrian" voiced TF51. Compare the sonic characteristics of each voice on classic studio applications like drum overheads, guitar cabinets, and vocals.

Accessories:

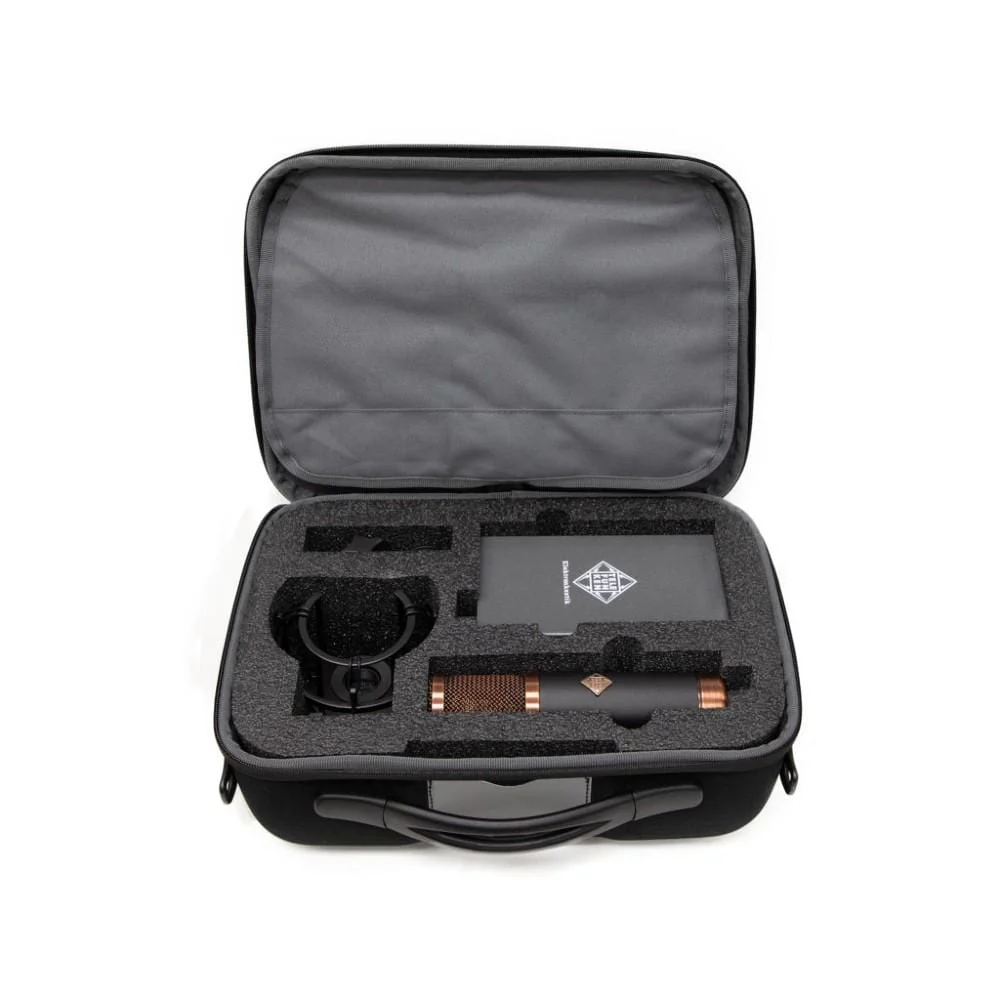

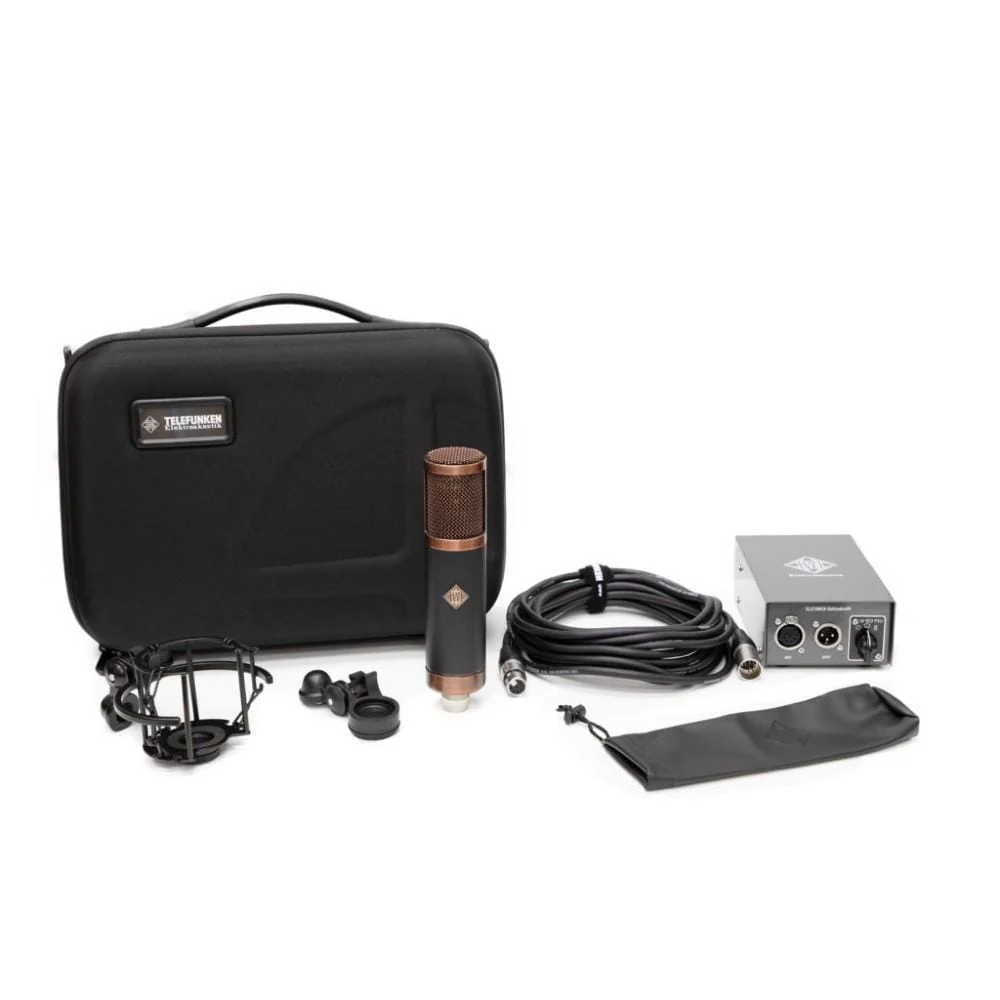

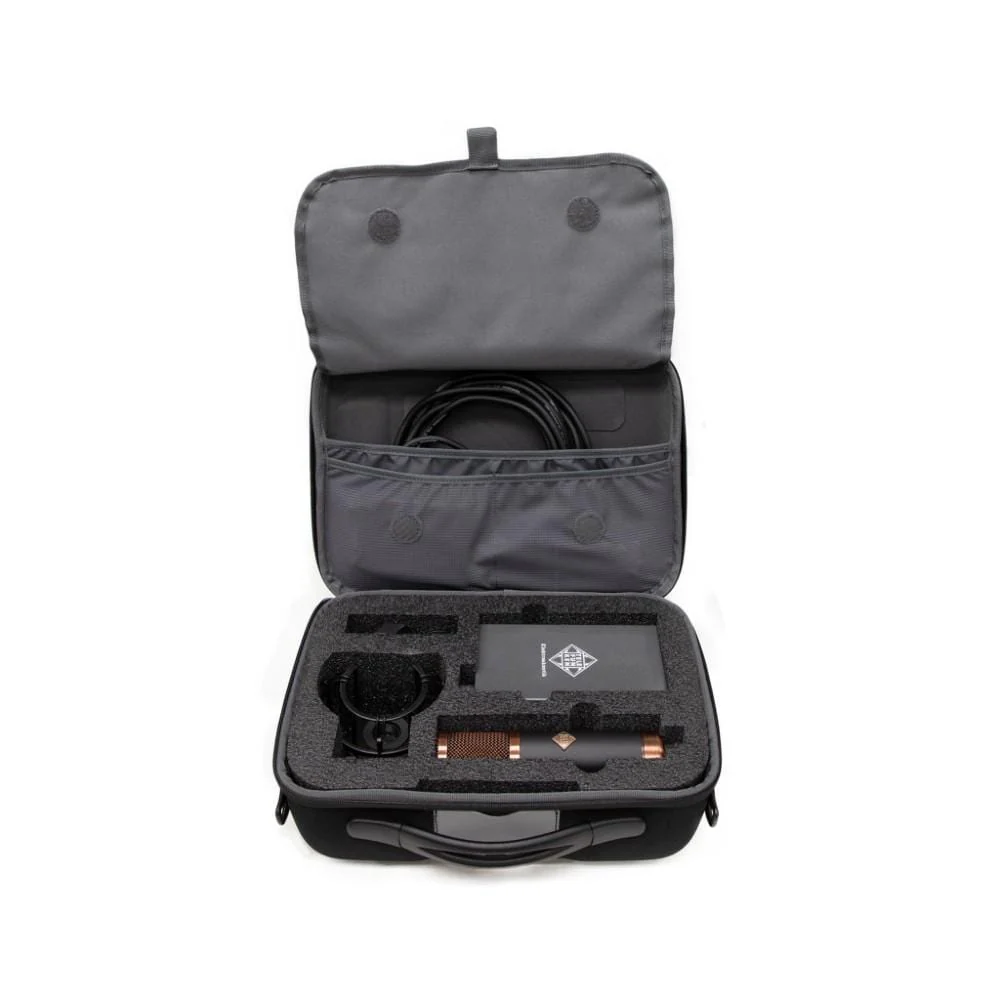

Every TF39 Copperhead Deluxe microphone system comes with a multi pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Technical Specifications:

• Type: Condenser Pressure Gradient
• Capsule: TK67 Center Terminated Diaphragm
• Tube Type: 5654W (New Old Stock)
• Transformer: Lundahl LL 1935
• Polar Pattern: Cardioid, Omnidirectional, Figure-8
• Frequency Range: 20Hz - 20kHz
• Sensitivity: 17mV/Pa
• THD at 1kHZ at 1Pa (Amplifier): < 0.3%
• Output Impedance: < 300 O
• Maximum SPL (for 1% THD): 130 dB
• S/N Ratio: 87 dBA
• Self Noise (Amplifier): 7 dBA
• Dimensions/Size: 200 mm L x 46 mm Dia
• Weight: 650 g
• Current Draw from Mains: 50 mA
• Power Supply: M 903 PSU - 7 Pin Female XLR Input, 3 Pin Male XLR Output, Polar Pattern Selector
• Cable: M 803 - 7 Meter TELEFUNKEN Tube Microphone Cable, 7 Pin Male & Female XLRs
• Shock Mount: M 703 - Shock Mount, M 782 - Stand Mount
• Flight Case: ZC03 - Light Weight Carrying Case

Made in USA
