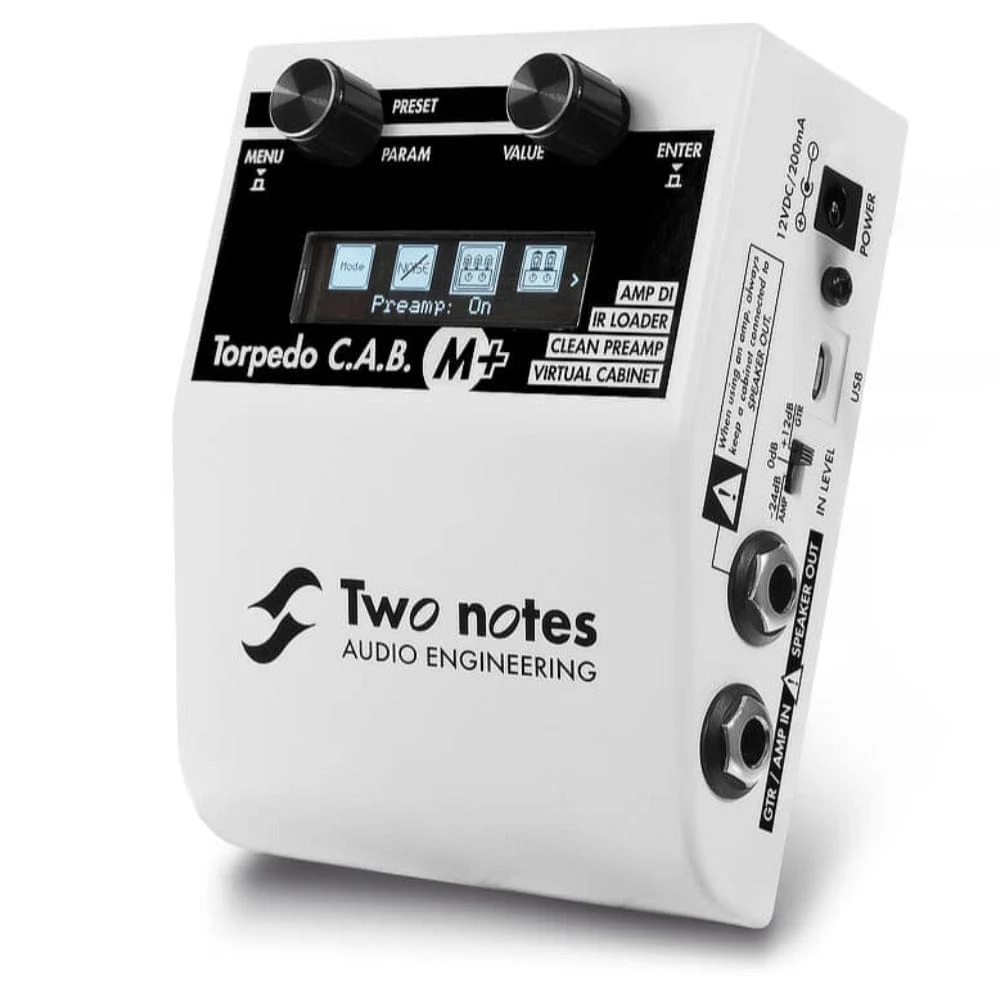

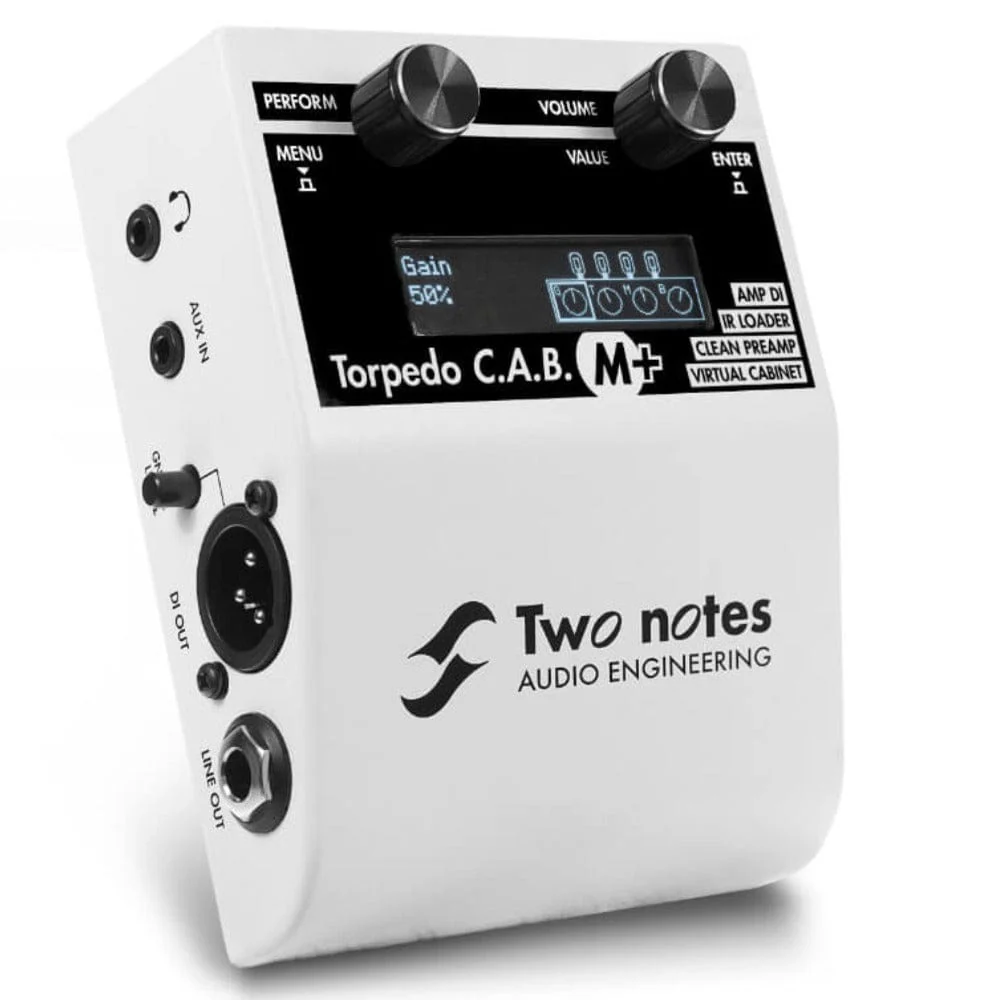

Two Notes TORPEDO C.A.B. M Plus Effect Pedal

Two Notes TORPEDO C.A.B. M Plus Effect Pedal Overview:

Torpedo C.A.B. M now includes a free upgrade to Torpedo C.A.B. M+. New and existing C.A.B. M owners can simply upgrade their C.A.B. M firmware via Torpedo remote (USB). This FREE update includes a stunning clean preamp (based on an all original ‘74 Silverface B’man), audio enhancer, tuner, additional reverbs and noise gate to work seamlessly with the power-amp simulators, virtual cabinets and dynamic IR (DynIR) technologies within the acclaimed Torpedo C.A.B. M.

Specifications:

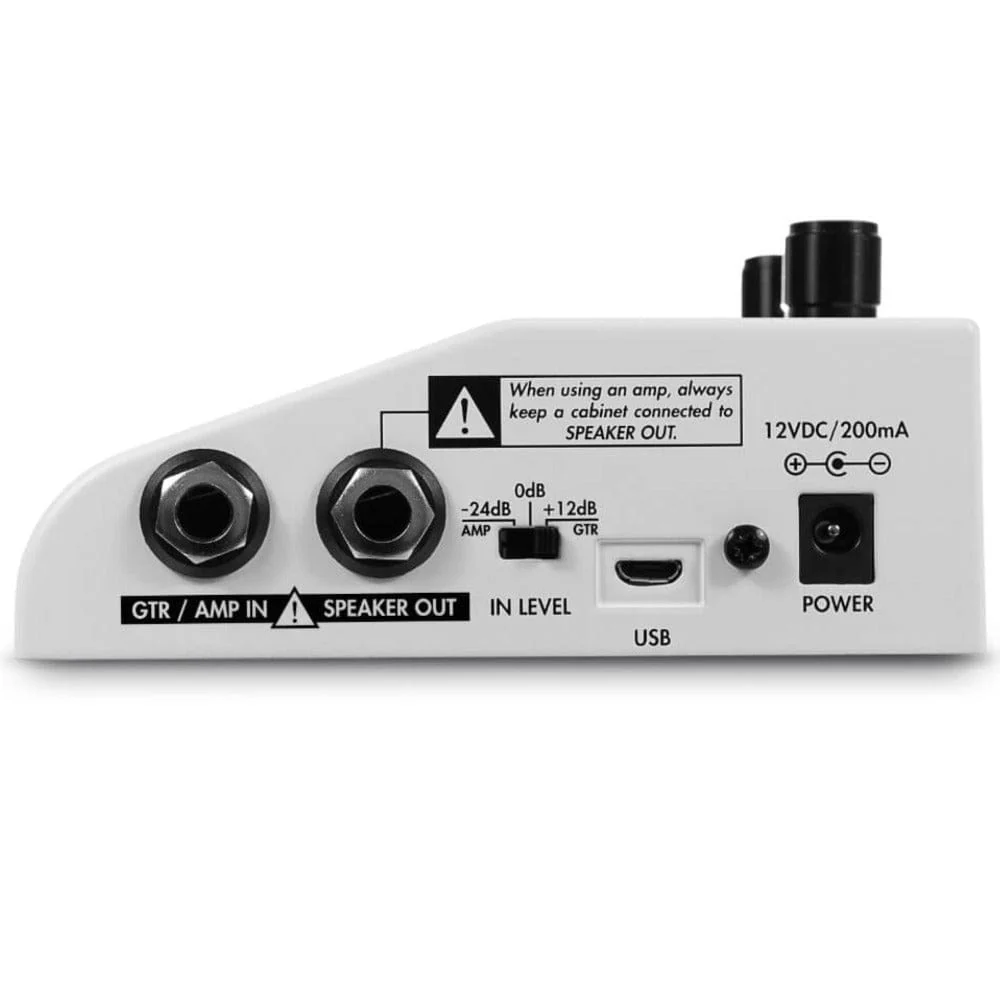

Input / Output

• Amp/Inst/Line Input:
• 1/4″ Jack balanced (TRS)

In Level Switch*:

• +12dB: Max level: 4 dBu, Impedance: 1 MOhms
• 0dB: Max level: 16 dBu, Impedance: 57 kOhms
• -24dB: Max level: 40 dBu, Impedance: 47 kOhms
• *Affects input sensitivity and impedance

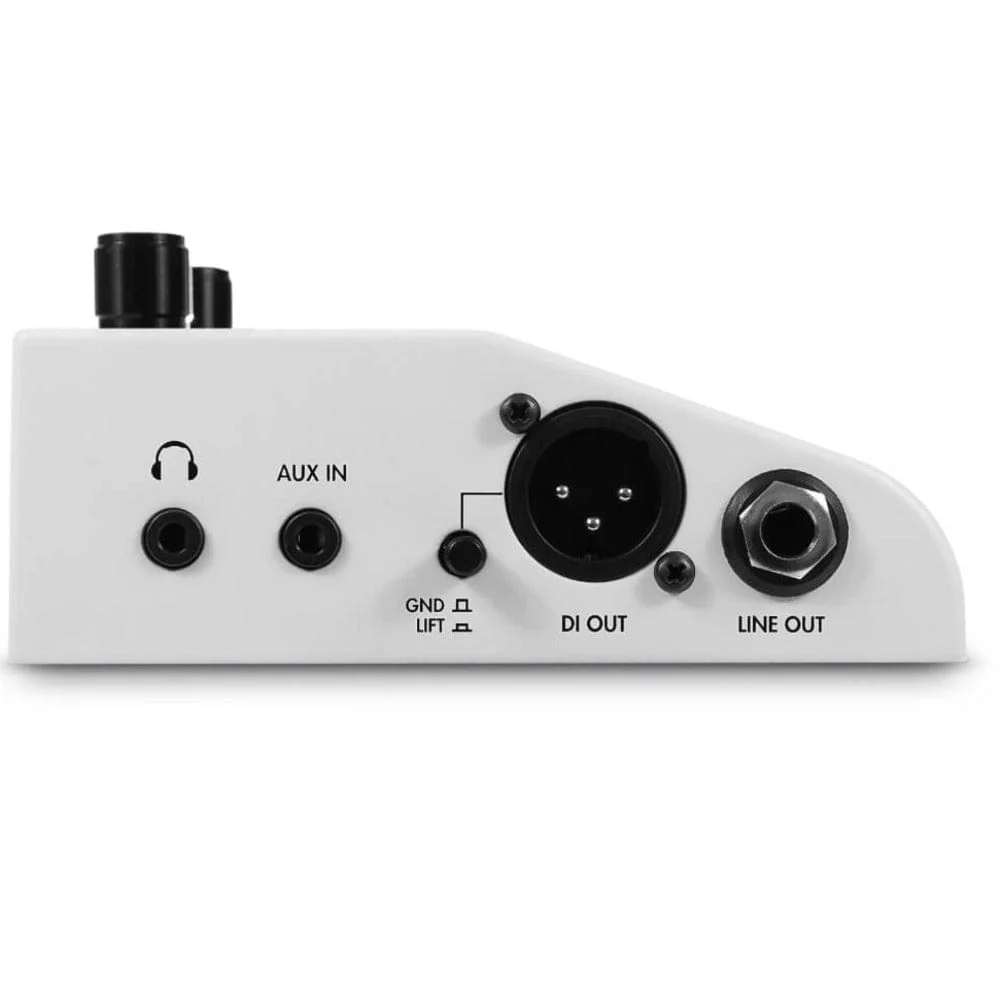

Aux In:

• 1/8″ (3.5mm) TRS Jack
• Downmixed to mono

Speaker output*: 1/4″ Jack balanced (TS)
*Unprocessed, unbuffered, directly connected to Amp In

DI output*:

• XLR balanced
• Max level: 10 dBu
• Impedance: 300 Ohms
• *Protected against +48V phantom power

Line output:

• 1/4″ Jack balanced (TRS)
• Max level: 10 dBu
• Impedance: 300 Ohms

Headphones output:

• 1/8″ Mini-Jack (TRS)

USB connector:

• USB 2.0 Micro-B

Memory card:

• 256Mb Micro-SD included Up to 32Gb cards supported

Digital Audio

• AD/DA Converters:
• Studio-grade 24-bit / 96 kHz

Bandwidth (-1dB):

• 30 Hz – 19 kHz

Signal-to-noise ratio:

• 91 dB

Internal Processing:

• 32-bit floating-point

Latency:

• 2.2 ms (Line Input to Line Output)

Power

• Power input connector:
• DC connector, 2.1mm x 5.5mm, center negative

Supplied adapter:

• 100-240v AC to 12v DC 1A

Power consumption:

• Approximately 2W

Current consumption:

• 200mA

Dimensions & weight

• Width x Depth x Height*:
• 12.1cm x 10cm x 6cm – 4.8″ x 4″ x 2.4″
• *Including connectors and knobs

Weight: 450 g / 0.99 lbs
